S30ENTG20.00A002

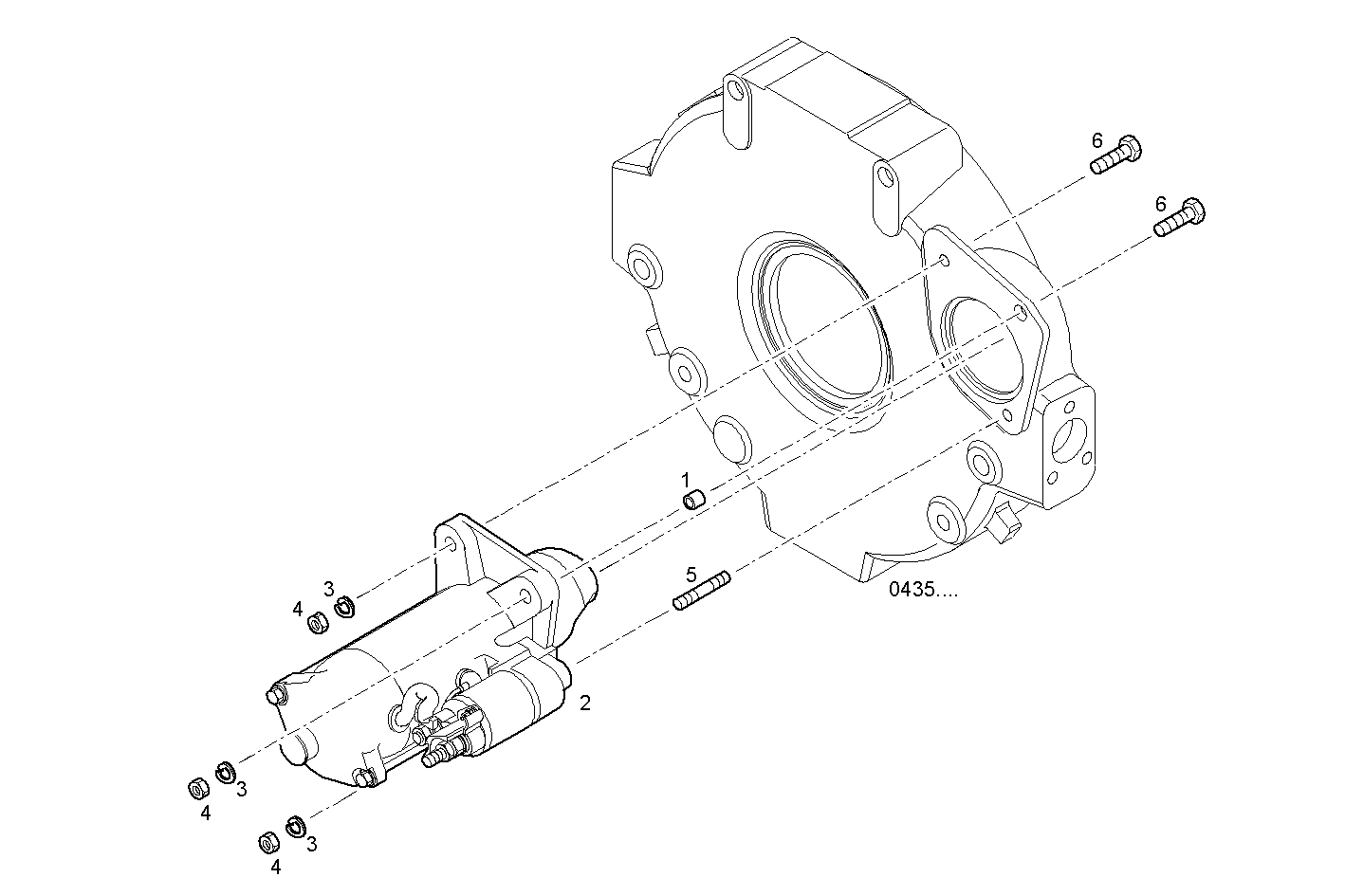

3600.019 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98405462 | DOWEL PIN Ø10,2 MM |
| 2 | 504204112 | STARTER MOTOR ASSY 24V |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17037925 | HEXAGON NUT M8X1,25 |
| 5 | 16746824 | STUD M8X30 MM (8.8) |
| 6 | 16606225 | HEXAGON BOLT M8X55 MM |
