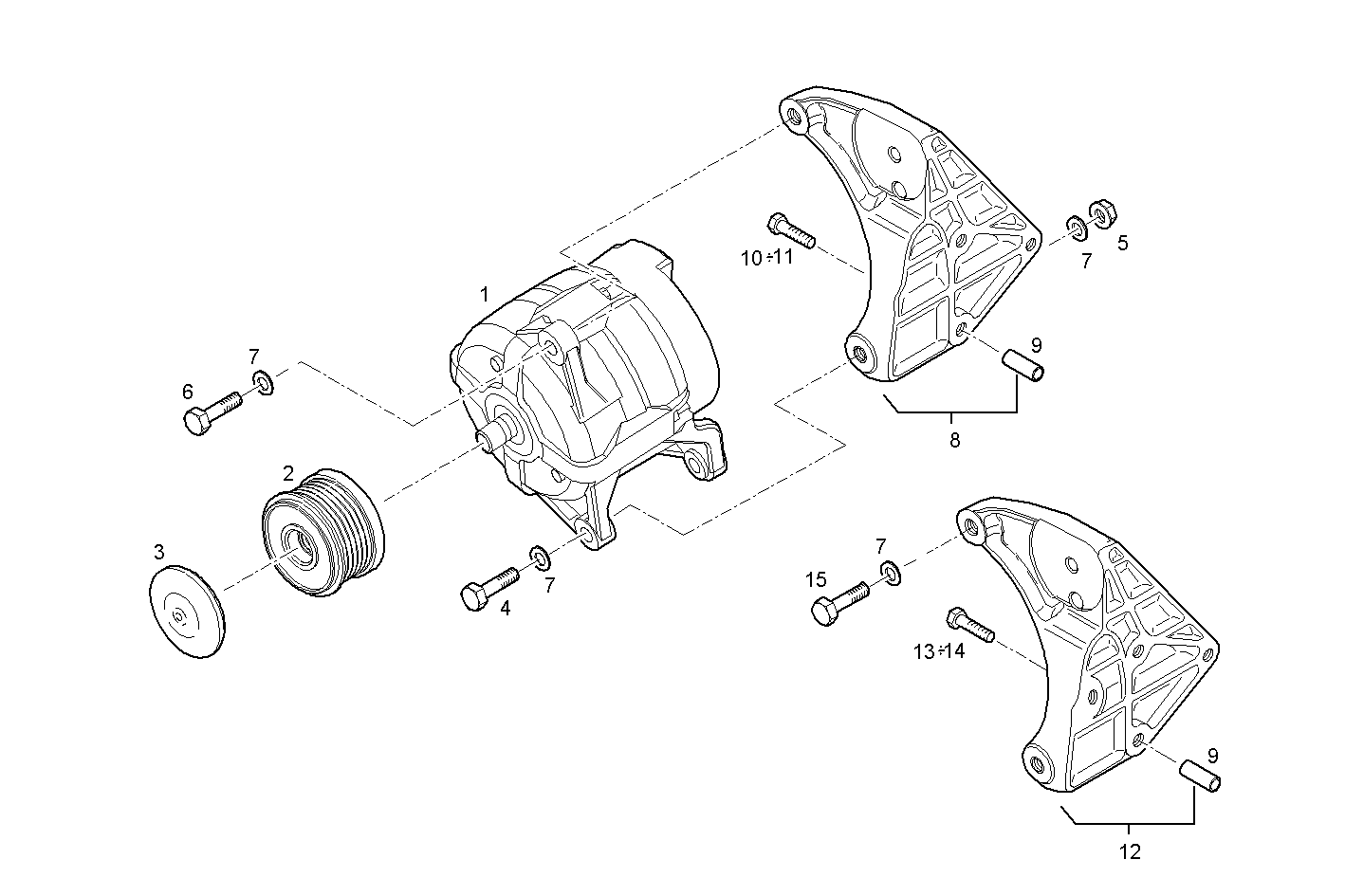

| Item |
Part number |
Description |
|
1 |
4892320 |
ALTERNATOR ASSY |
|
2 |
504088796 |
GENERATOR PULLEY |
|
3 |
504094102 |
COVER |
|
4 |
11108821 |
HEXAGON BOLT M10X130 MM |
|
5 |
17044825 |
HEXAGON NUT M10 |
|
6 |
16587525 |
HEXAGON BOLT M10X45 MM |
|
7 |
17097124 |
WASHER 10x21 |
|
8 |
504093925 |
GENERATOR SUPPORT [UP TO # 259035] |
|
9 |
500371139 |
DOWEL PIN |
|
10 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
11 |
16592325 |
HEXAGON BOLT |
|
12 |
504115734 |
GENERATOR SUPPORT [FROM # 259036] |
|
13 |
16297721 |
HEXAGON BOLT M8x77 |
|
14 |
16586825 |
HEXAGON BOLT M8X1.25X45 MM |
|
15 |
16587325 |
HEXAGON BOLT M10X35 MM |
