S30ENTG20.00A002

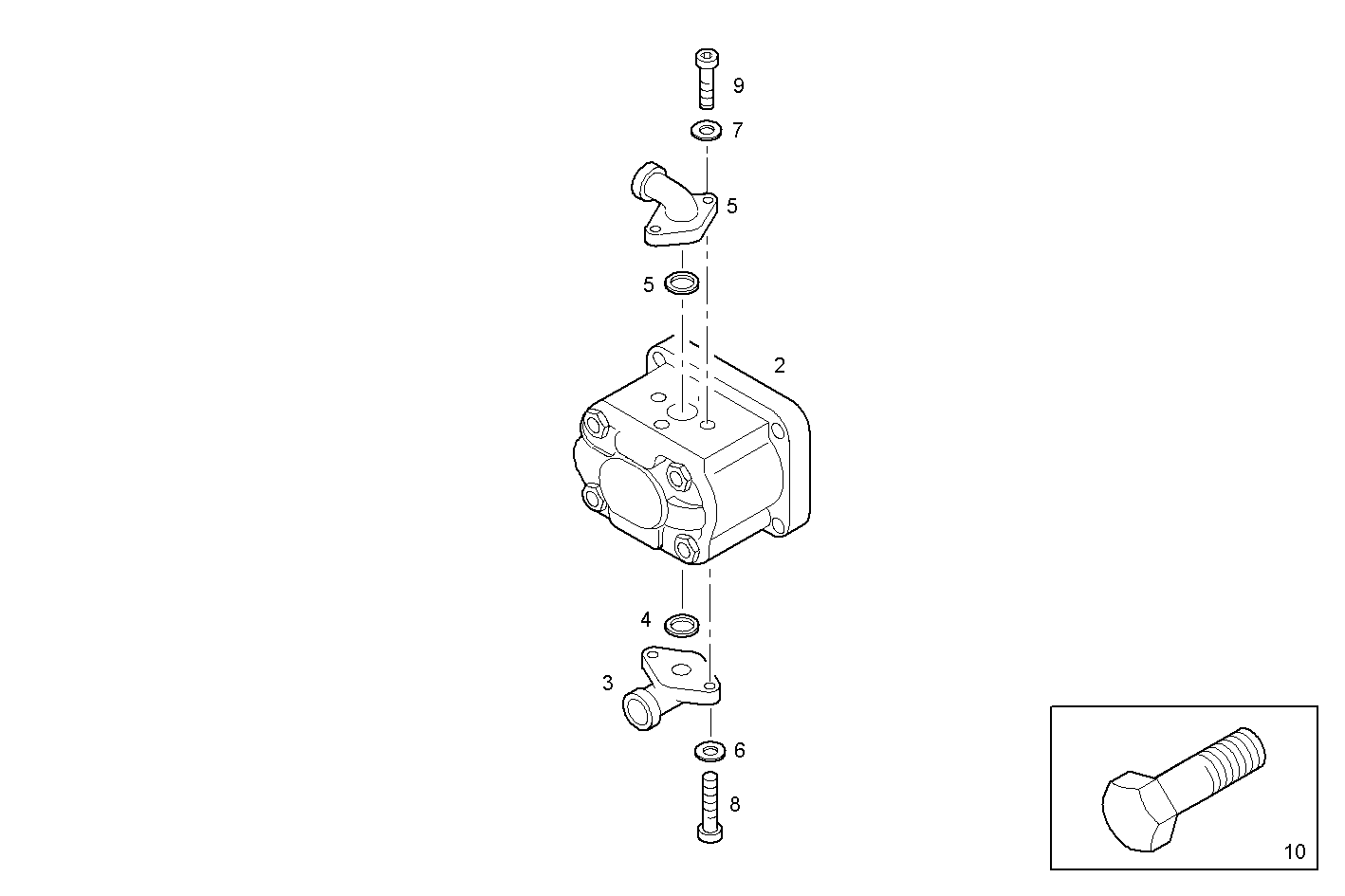

4220.025 POWER STEERING PUMP

Iveco/FPT POWER STEERING PUMP

Item Part number Description
1 8047749 PIPE SOCKET
2 8047638 HYDRAULIC PUMP
3 4690715 PIPE SOCKET
4 17282181 O-RING Ø21,8 MM SP=2,6 MM
5 17281781 O-RING Ø15,5 MM SP=2,6 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17088474 WASHER Ø6X12 MM
8 16689524 SOCKET-HEAD SCREW M6
9 16689424 SOCKET-HEAD SCREW M6X30 MM
10 14307524 CYLIND-HEAD SCREW
