S30ENTM23.10

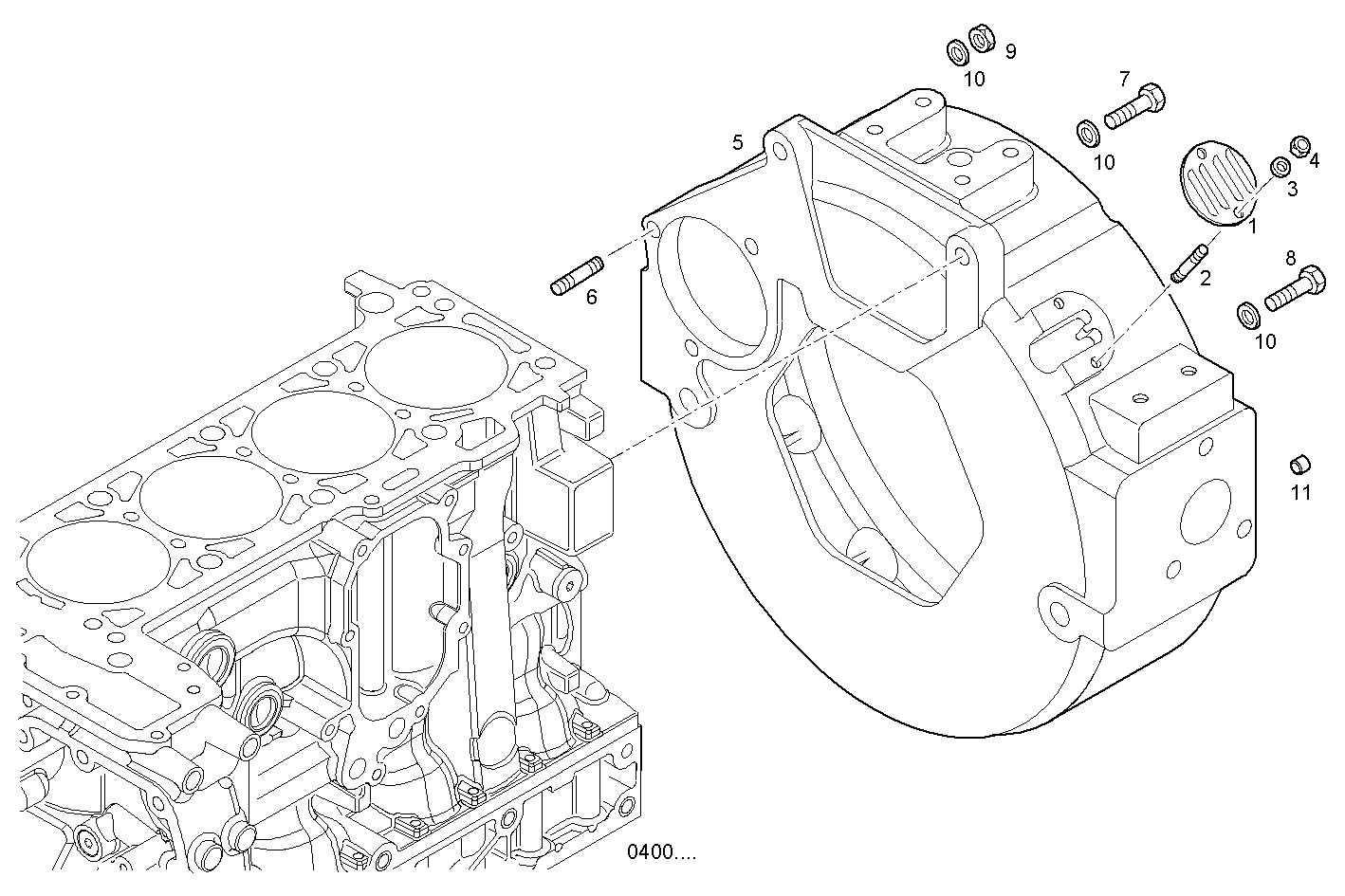

0435.023 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 4540660 | COVER |
| 2 | 16726124 | STUD |
| 3 | 17094504 | WASHER Ø5,3X10 MM |
| 4 | 17037725 | NUT |
| 5 | 4934049 | FLYWHEEL HOUSING |
| 6 | 13546321 | STUD M10X25 MM |
| 7 | 15541024 | HEXAGON BOLT M12X60 MM |
| 8 | 15541421 | HEXAGON BOLT M12X1,25X80 MM |
| 9 | 17038631 | HEXAGON NUT M12X1,25 |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 7300019 | DOWEL PIN |
