S30ENTM23.10

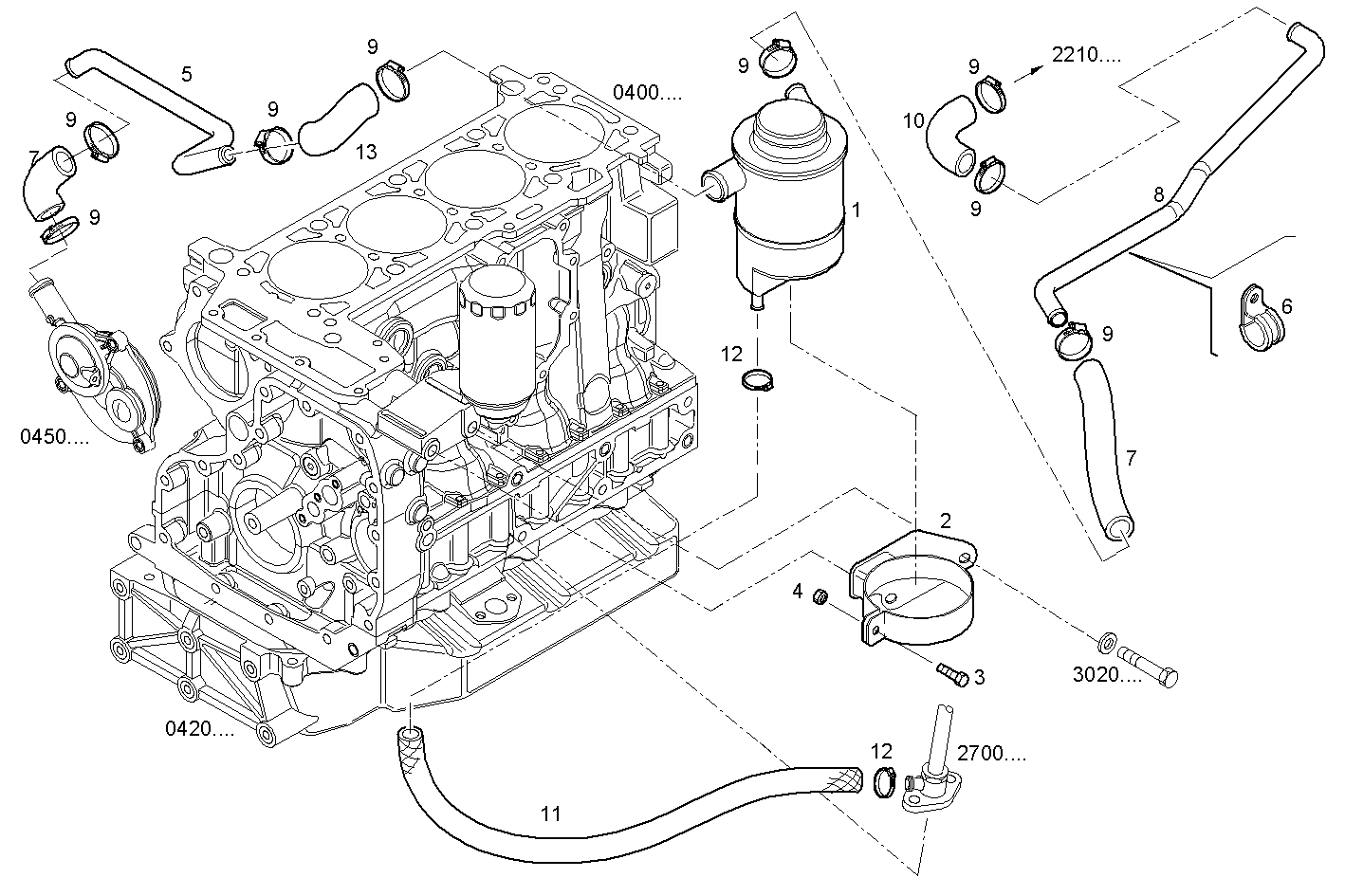

0450.225 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4858569 | BREATHER |
| 2 | 8045090 | SUPPORT |
| 3 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 4 | 17044721 | HEXAGON NUT M8X1,25 |
| 5 | 8044931 | BREATHER PIPE |
| 6 | 10450590 | PIPE CLIP Ø18 MM |
| 7 | 8108085 | RUBBER SLEEVE |
| 8 | 8044950 | BREATHER PIPE |
| 9 | 18088493 | CLIP |
| 10 | 8044961 | RUBBER SLEEVE |
| 11 | 17724687 | HOSE |
| 12 | 17764594 | HOSE CLIP |
| 13 | 4865232 | RUBBER SLEEVE |
