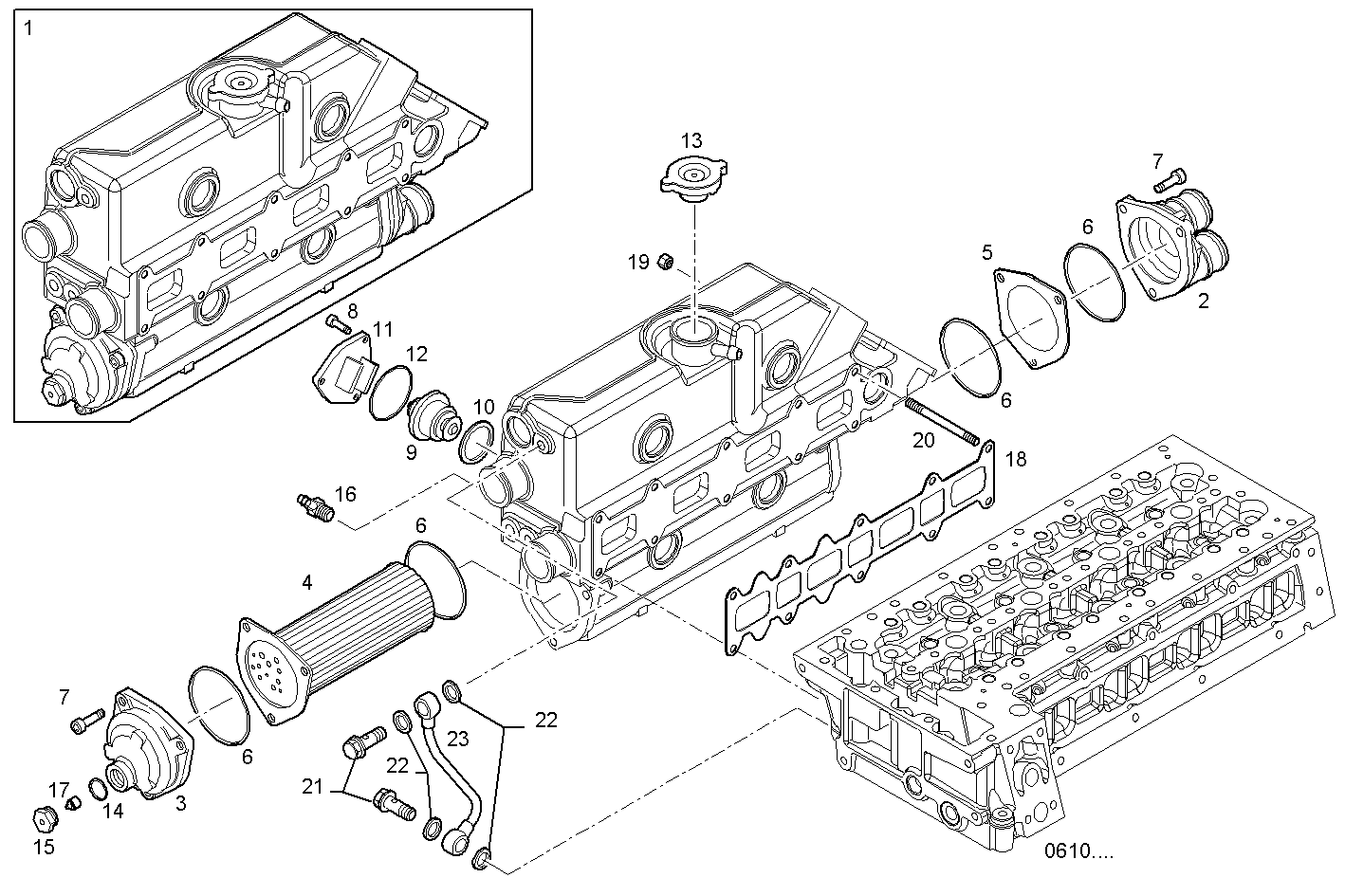

| Item |
Part number |
Description |
|
1 |
8040550 |
EXHAUST MANIFOLD ASSY |
|
2 |
8044321 |
COVER REAR |
|
3 |
8044322 |
COVER FRONT |
|
4 |
8044323 |
TUBE STACK |
|
5 |
8044324 |
SPACING BAR |
|
6 |
8044325 |
GASKET |
|
7 |
16690924 |
CYLIND-HEAD SCREW M8X40 MM |
|
8 |
16690624 |
CYLIND-HEAD SCREW M8X25 MM |
|
9 |
8044326 |
THERMOSTAT |
|
10 |
8044327 |
GASKET |
|
11 |
8044328 |
COVER |
|
12 |
8044329 |
GASKET |
|
13 |
8044330 |
PLUG |
|
14 |
4858610 |
WASHER �18X24 MM SP=1,5 MM |
|
15 |
4917793 |
PLUG M18 |
|
16 |
8044332 |
PLUG |
|
17 |
8105277 |
SACRIFICAL ANODE �14 MM |
|
18 |
504022754 |
EXH. MANIFOLD GKT |
|
19 |
17044721 |
HEXAGON NUT M8X1,25 |
|
20 |
8042725 |
STUD |
|
21 |
4864079 |
SCREW CONNECTOR M10X1 |
|
22 |
10284460 |
SEAL GASKET �10X16 MM |
|
23 |
8042760 |
BREATHER PIPE |
