S30ENTM23.10

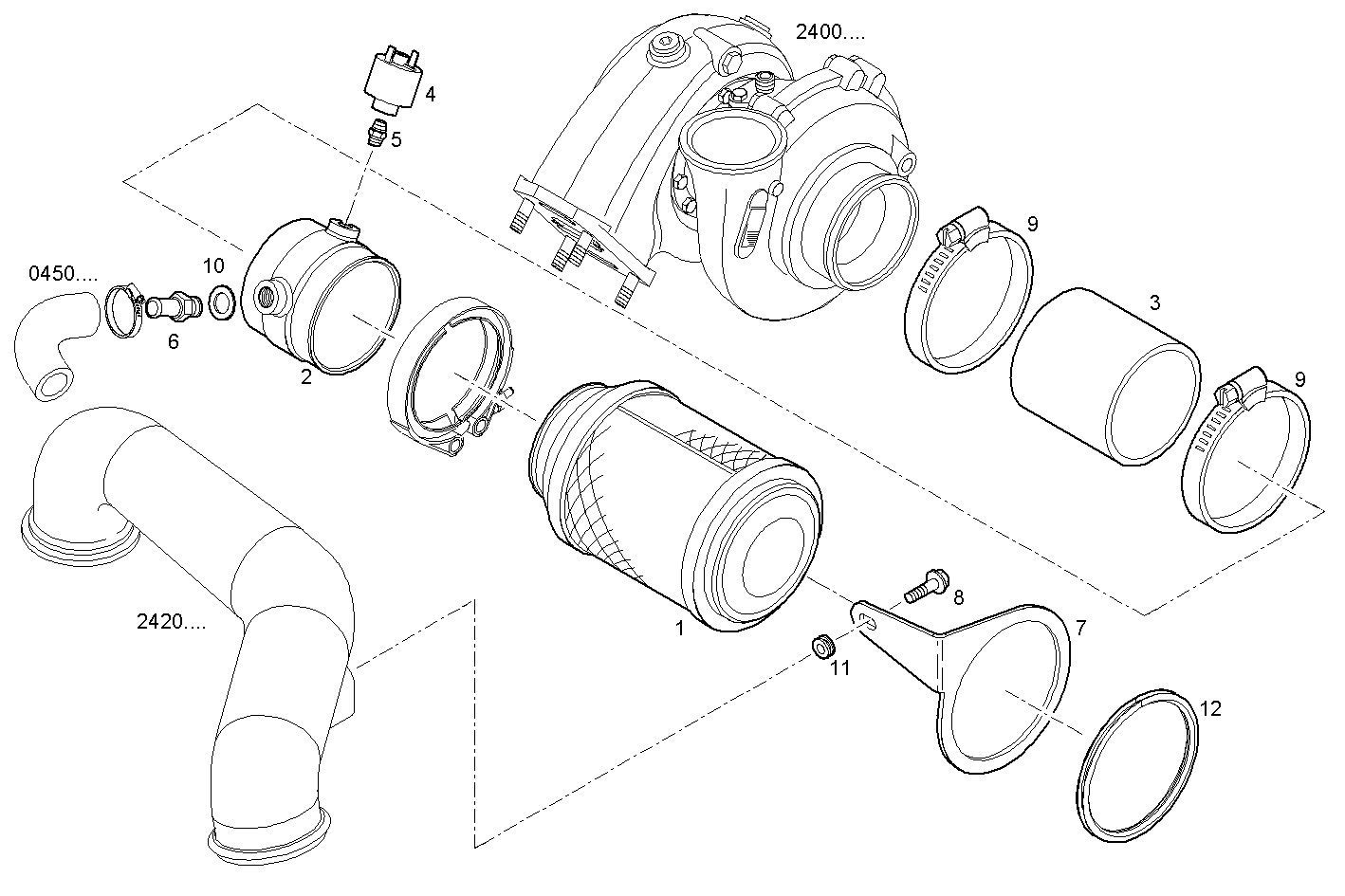

2210.064 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8040711 | AIR CLEANER |
| 2 | 8040712 | AIR MANIFOLD |
| 3 | 8012242 | RUBBER SLEEVE |
| 4 | 8027423 | CHOCKED FILTER INDIC. |
| 5 | 8009522 | PIPE SOCKET |
| 6 | 8045024 | PIPE SOCKET |
| 7 | 8042412 | RETAINER |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 17765494 | CLIP dia. = 100/120 |
| 10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 11 | 4833816 | INSULATING RING |
| 12 | 8043521 | RUBBER GASKET |
