S30ENTM23.10

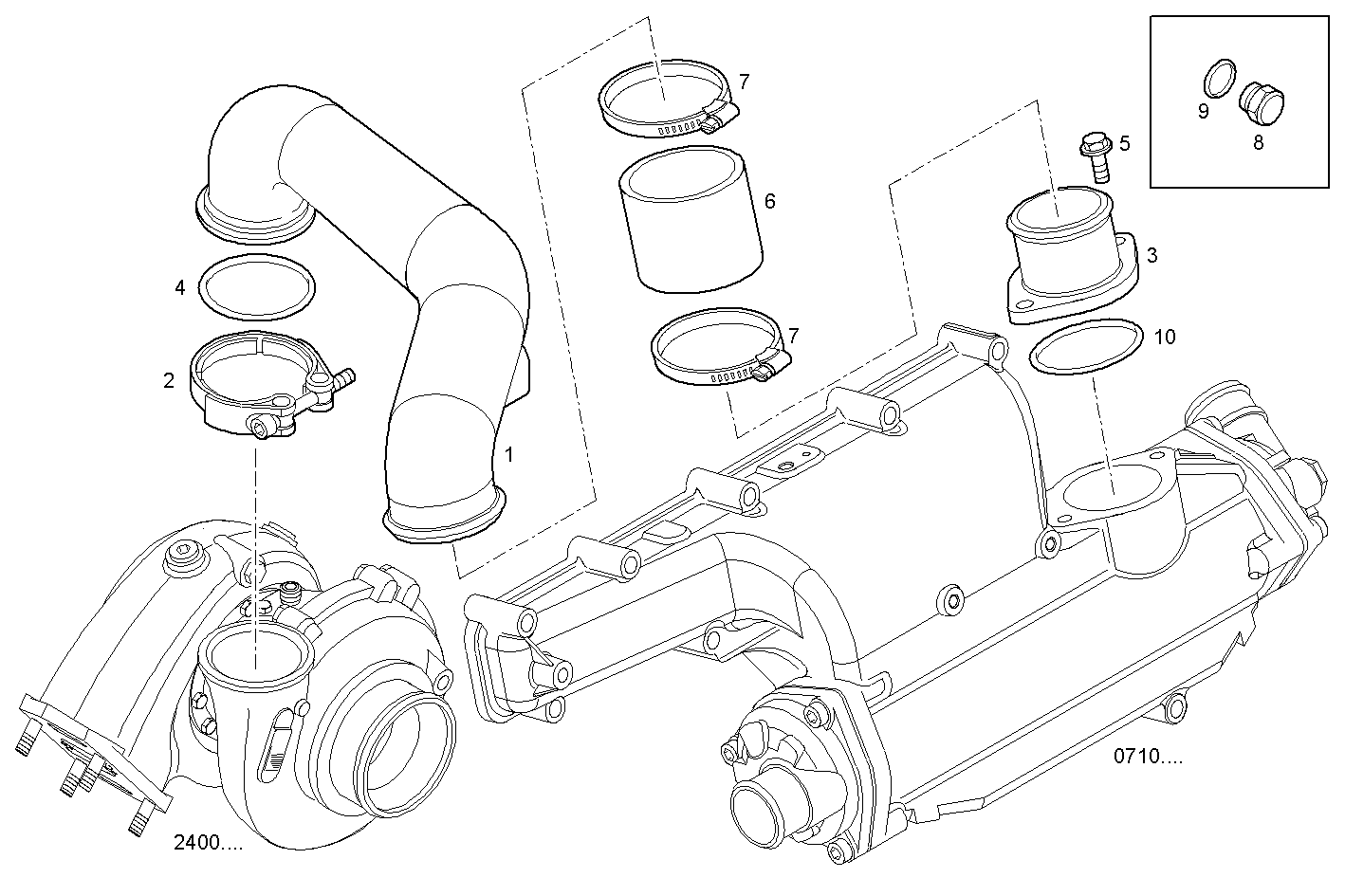

2420.251 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8040673 | AIR PIPE/DUCT |
| 2 | 504120931 | CLIP |
| 3 | 8040956 | AIR PIPE/DUCT |
| 4 | 17284381 | O-RING Ø56,8 MM SP=2,62 MM |
| 5 | 16586625 | HEXAGON BOLT M8X35 MM |
| 6 | 8025444 | RUBBER SLEEVE |
| 7 | 17768591 | CLIP |
| 8 | 16992315 | THREADED PLUG M14X1,5 |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 10 | 17290381 | O-RING Ø66,27 MM SP=3,53 MM |
