S30ENTM23.10

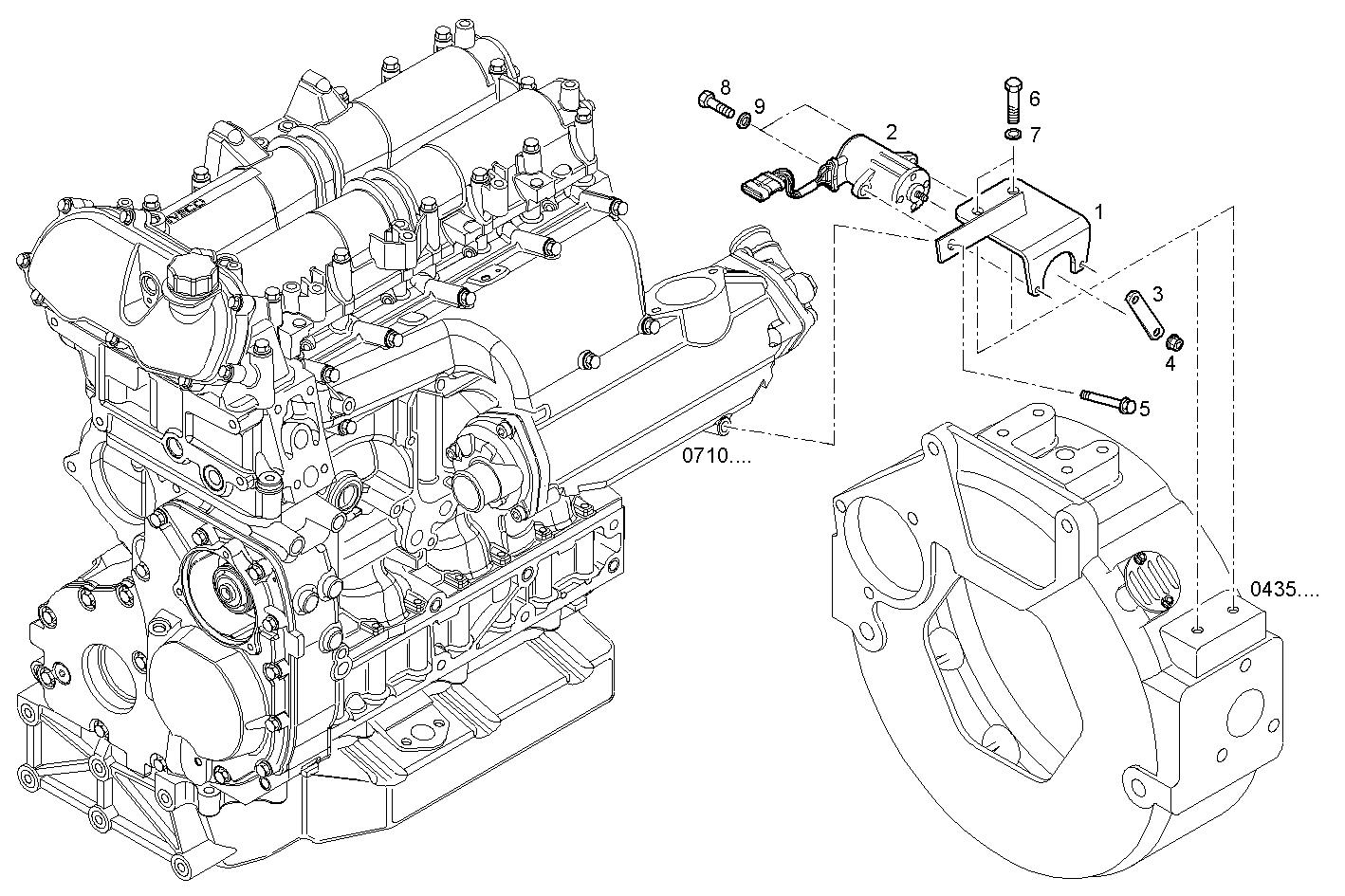

2650.007 ELECTRONIC ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8043692 | RETAINER |
| 2 | 8043732 | POTENTIOMETER |
| 3 | 8042865 | ACCELERATOR PEDAL |
| 4 | 17044625 | HEXAGON NUT M6 |
| 5 | 16592625 | HEXAGON BOLT M8X80 MM |
| 6 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16603677 | HEXAGON BOLT M6X16 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
