S30ENTM23.10

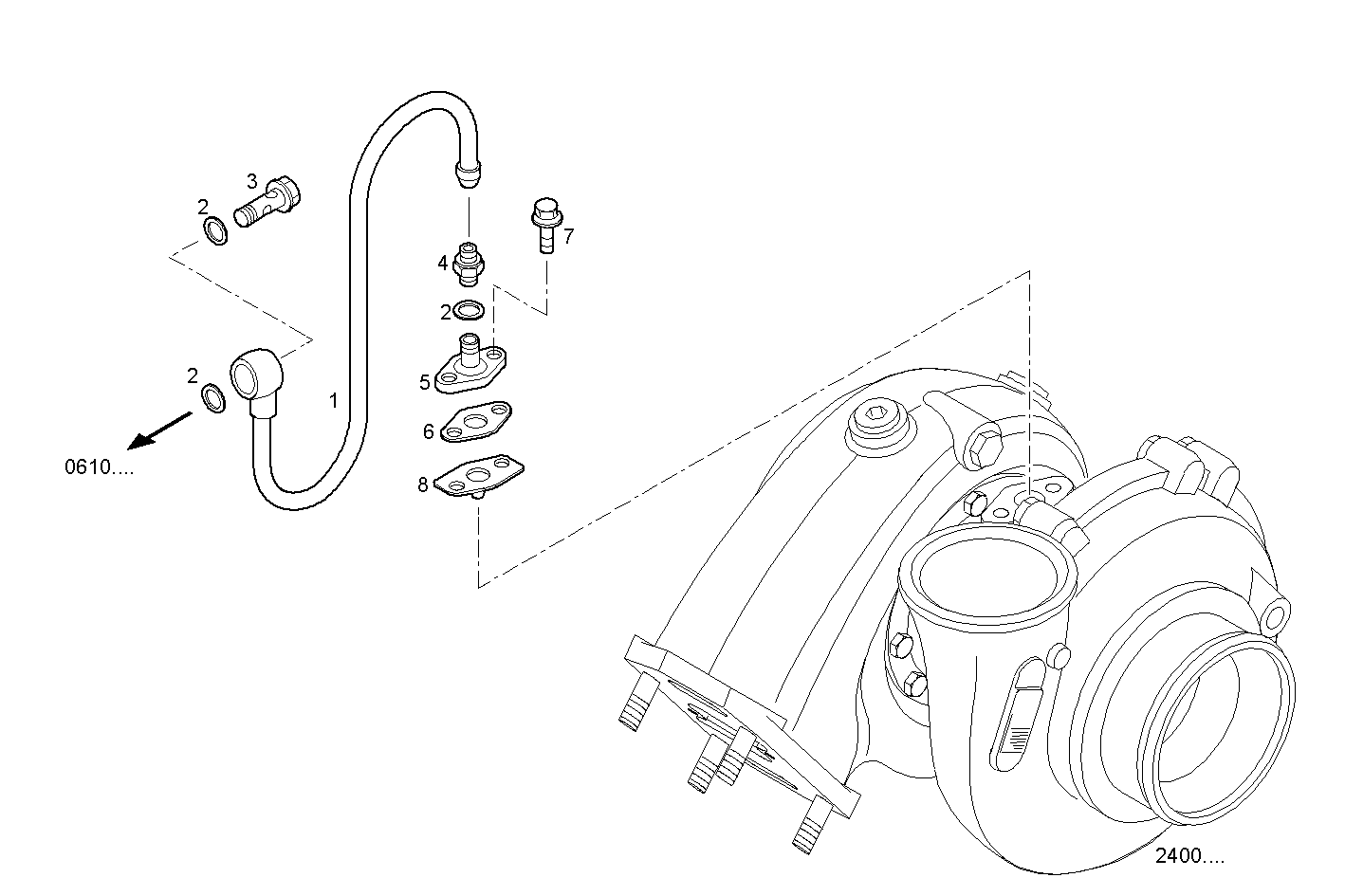

3010.245 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8042741 | PIPE |
| 2 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 3 | 8042929 | SCREW CONNECTOR |
| 4 | 8042739 | PIPE SOCKET |
| 5 | 61689705 | FLANGED SOCKET |
| 6 | 98415922 | FLAT ENGINE GASKET |
| 7 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 8 | 98482093 | GASKET |
