S30ENTM23.10

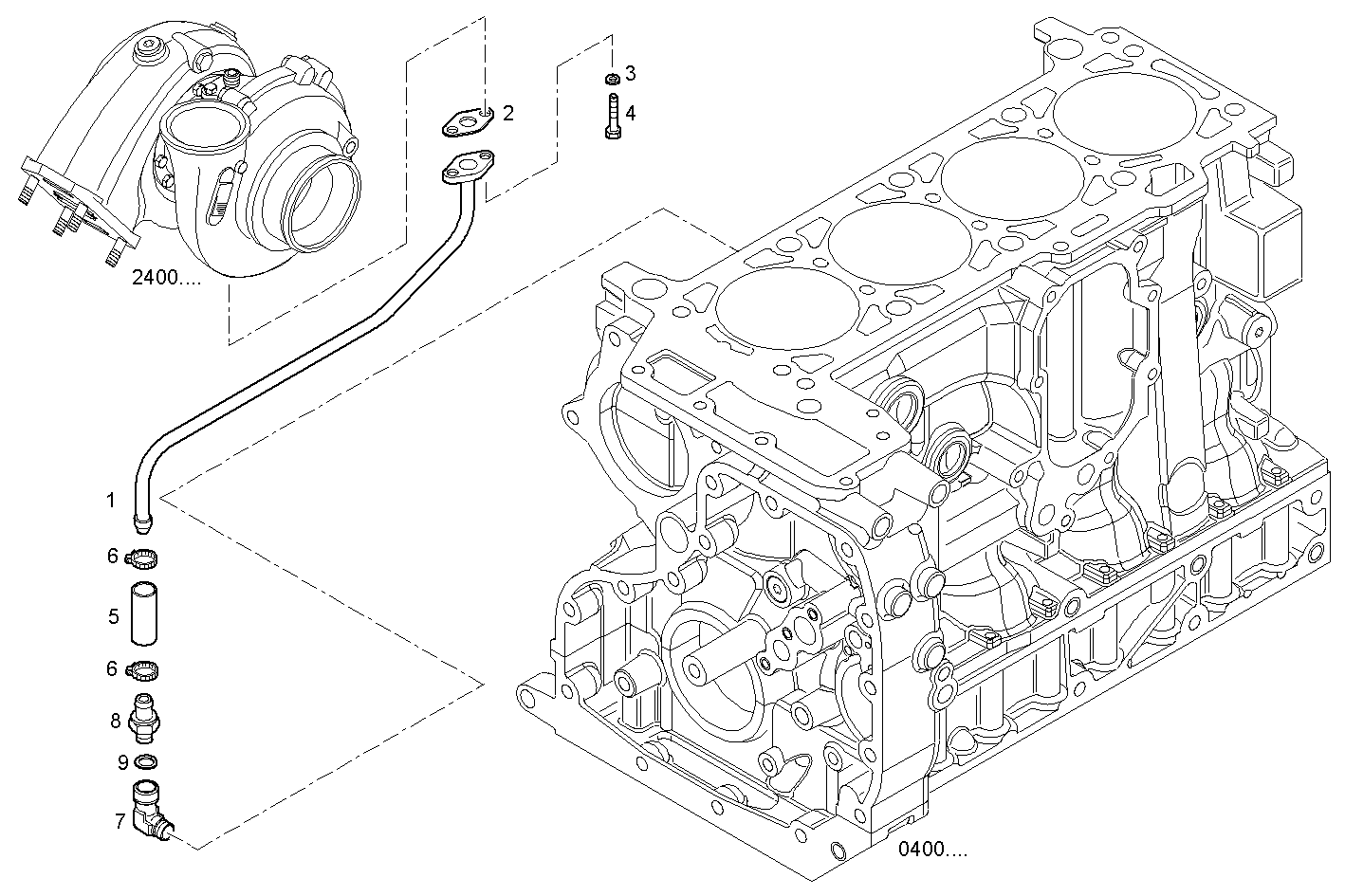

3010.246 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8042758 | PIPE |
| 2 | 98415923 | FLAT ENGINE GASKET |
| 3 | 17094814 | WASHER |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 8109346 | RUBBER SLEEVE |
| 6 | 17764593 | CLIP Ø20/32 MM |
| 7 | 8005303 | PIPE SOCKET M16X1,5 |
| 8 | 8045390 | THREADED UNION |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
