S30ENTM23.10

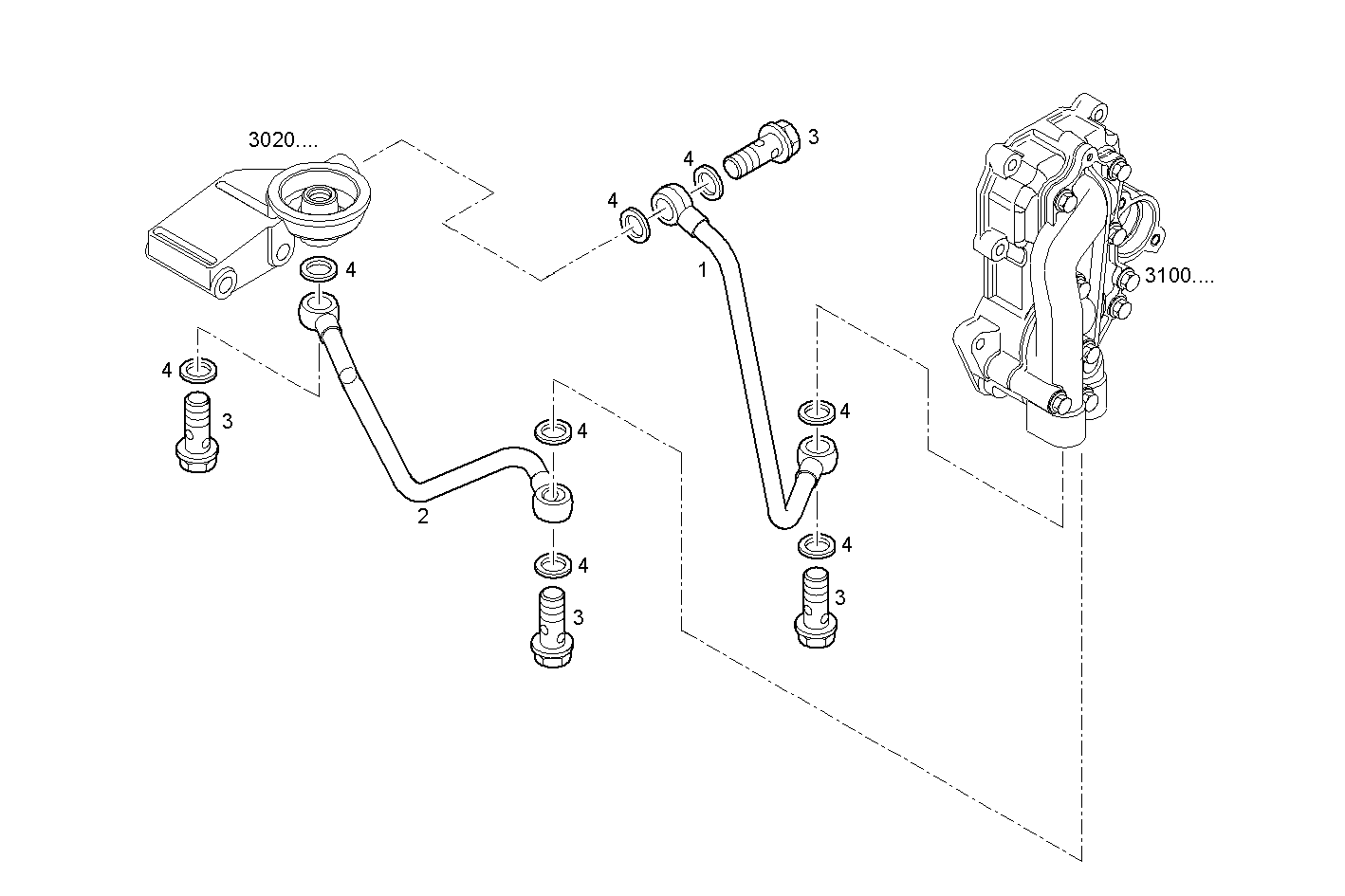

3010.247 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8043899 | OIL LINE |
| 2 | 8043901 | OIL LINE |
| 3 | 4864085 | SCREW CONNECTOR M18X1,5 |
| 4 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| Item | Part number | Description |
|---|---|---|
| 1 | 8043899 | OIL LINE |
| 2 | 8043901 | OIL LINE |
| 3 | 4864085 | SCREW CONNECTOR M18X1,5 |
| 4 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
