S30ENTM23.10

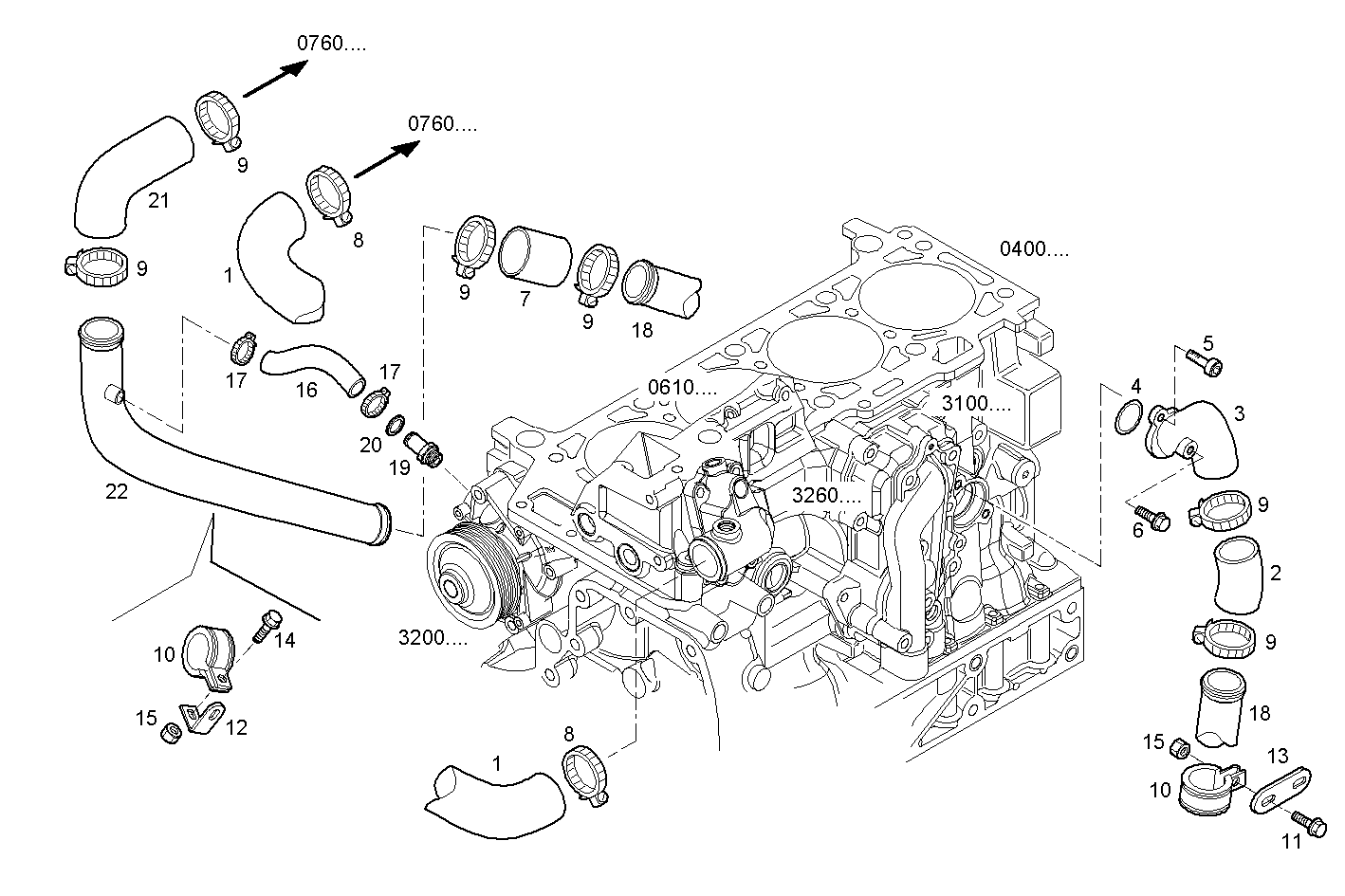

3210.348 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8042444 | WATER HOSE |
| 2 | 8100666 | RUBBER SLEEVE |
| 3 | 8040666 | WATER PIPE |
| 4 | 17282981 | O-RING 2,62x34,59 |
| 5 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 6 | 16592224 | HEXAGON BOLT M8X55 MM |
| 7 | 98434881 | WATER HOSE |
| 8 | 17764893 | CLIP Ø40/60 MM |
| 9 | 17764791 | CLIP Ø32/50 MM |
| 10 | 18088493 | CLIP |
| 11 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 12 | 8043337 | RETAINER |
| 13 | 8043338 | RETAINER |
| 14 | 18139424 | HEXAGON BOLT M10X20 MM |
| 15 | 17044825 | HEXAGON NUT M10 |
| 16 | 8031988 | WATER HOSE |
| 17 | 18088392 | CLIP Ø16/25 MM |
| 18 | 8042457 | WATER PIPE |
| 19 | 504037979 | SCREW CONNECTOR |
| 20 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 21 | 8017516 | WATER HOSE |
| 22 | 8043341 | WATER PIPE |
