S30ENTM23.10

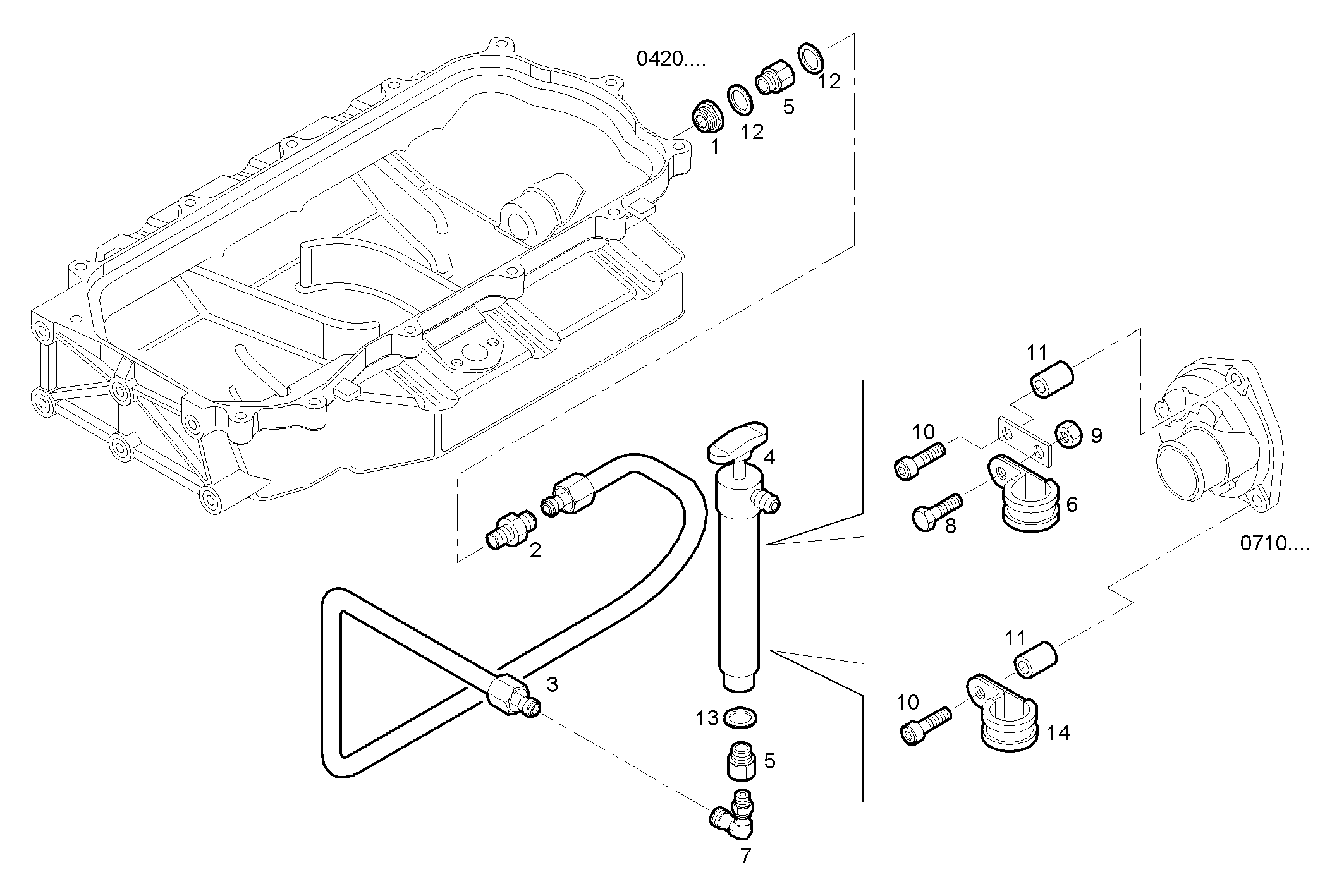

5510.060 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8037440 | BUSH M24X1,5/M14X1,5 |
| 2 | 16500215 | THREADED UNION M14X1,5/M16X1,5 |
| 3 | 8043497 | OIL LINE |
| 4 | 8019921 | HAND PUMP |
| 5 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 6 | 4928851 | CLIP |
| 7 | 8025927 | ELBOW COUPLING |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 17044721 | HEXAGON NUT M8X1,25 |
| 10 | 16691324 | CYLIND-HEAD SCREW M8X60 MM |
| 11 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 12 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 13 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 14 | 4935081 | CLIP |
