S30ENTM23.10

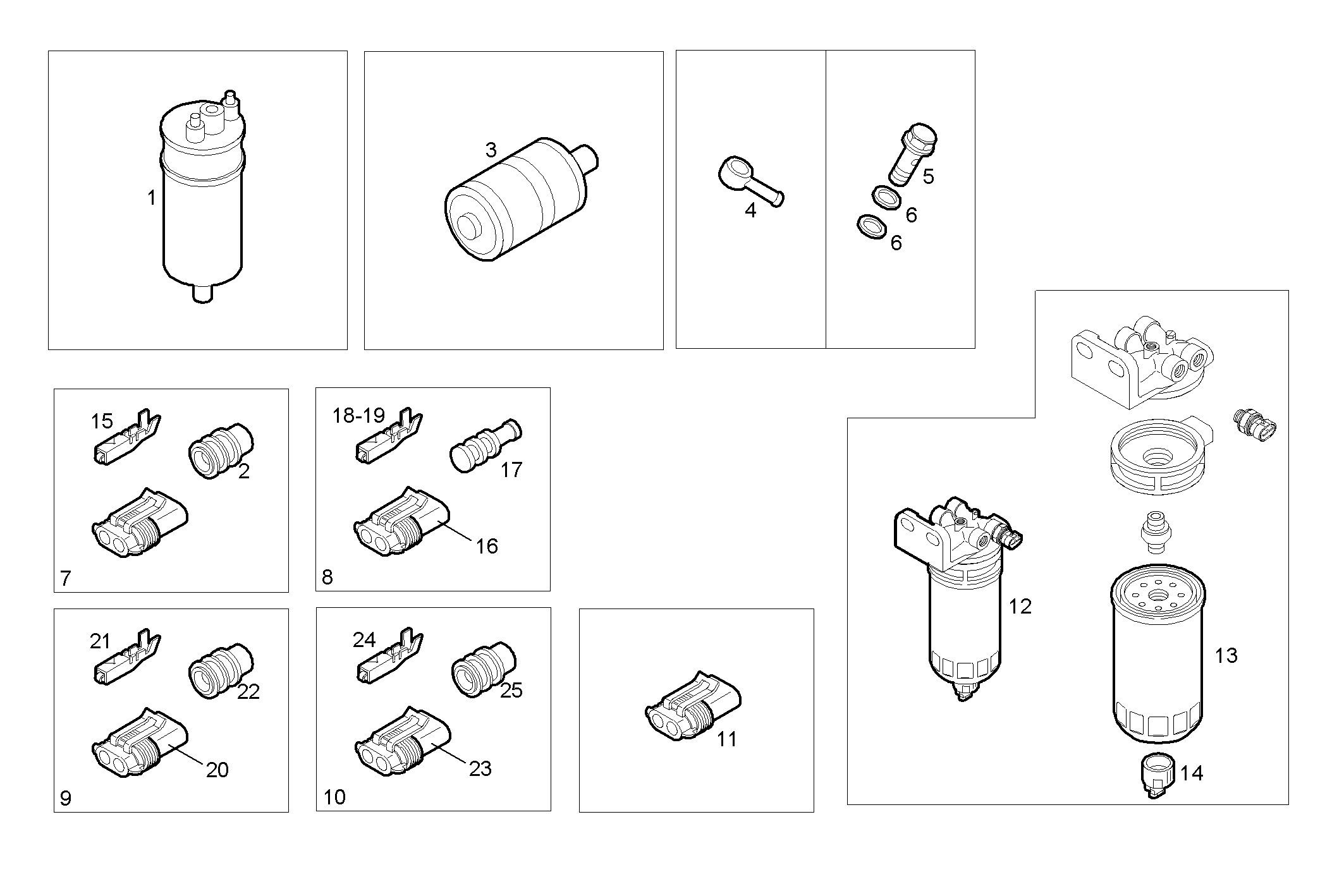

8600.211 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 500366053 | PUMP Electric for fuel |
| 2 | 12332885 | GASKET |
| 3 | 500318246 | PREFILTER |
| 4 | 98413896 | PIPE SOCKET Ø8 MM |
| 5 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 6 | 98474308 | SEAL GASKET Ø14X22 MM |
| 7 | 8033203 | WIRE CONNECTOR ASSY |
| 8 | 8044704 | WIRE CONNECTOR ASSY |
| 9 | 8044705 | WIRE CONNECTOR ASSY |
| 10 | 8033710 | CONNECTION ASSY |
| 11 | 8044707 | CONNECTION |
| 12 | 8048393 | FUEL FILTER ASSY |
| 13 | 2992300 | FUEL FILTER ELEM. |
| 14 | 8097565 | SENSOR |
| 15 | 12331744 | TERMINAL |
| 16 | 12330587 | WIRE CONNECTOR |
| 17 | 12330383 | RUBBER BUSH |
| 18 | 12330144 | TERMINAL |
| 19 | 12417487 | WIRE CONNECTOR |
| 20 | 12489887 | WIRE CONNECTOR |
| 21 | 12309290 | TERMINAL |
| 22 | 4835259 | GASKET |
| 23 | 98435346 | WIRE CONNECTOR 2 pin female |
| 24 | 4861963 | RUBBER BUSH |
| 25 | 98435372 | TERMINAL |
