S30ENTM23.10

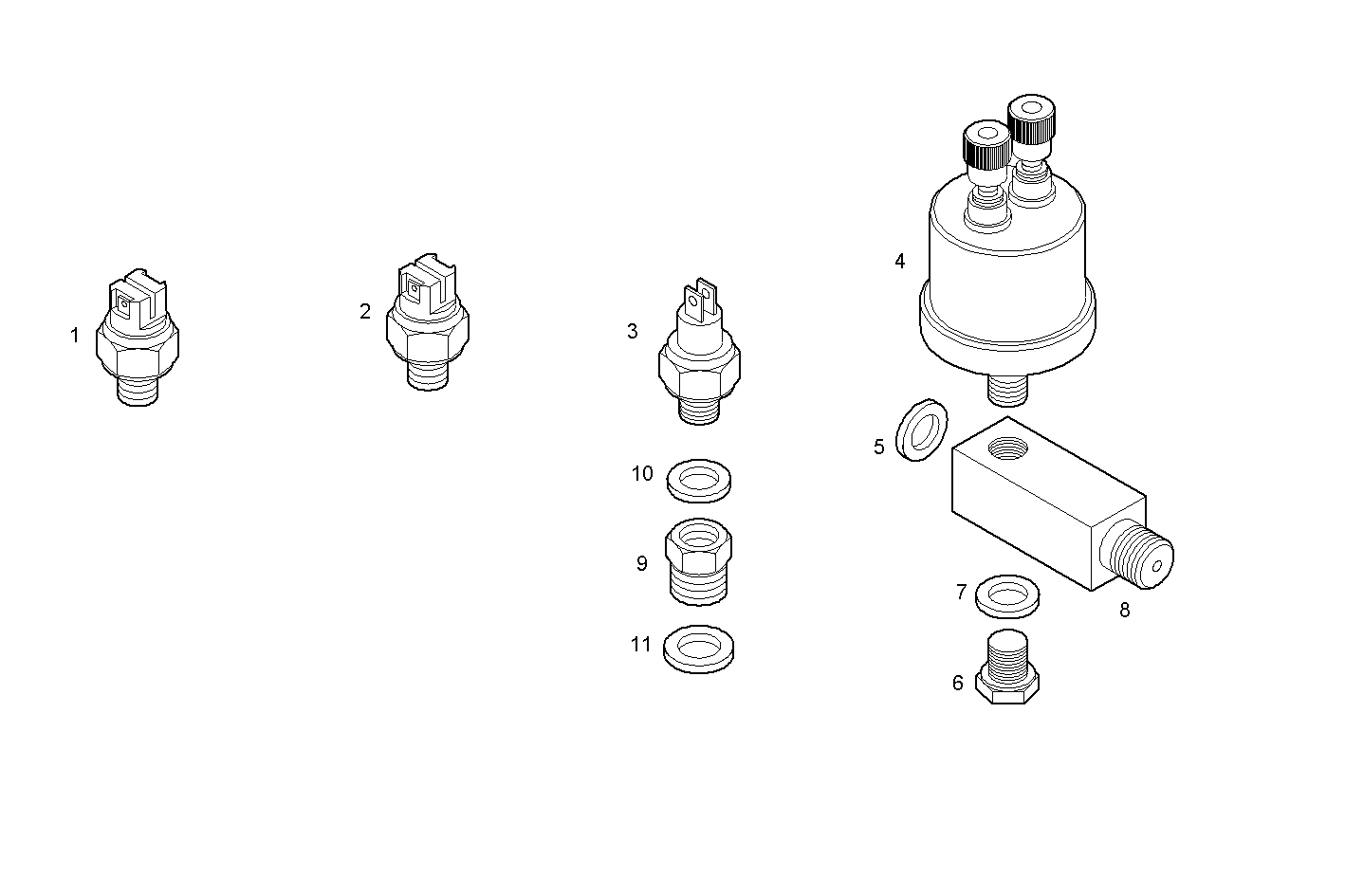

A38550504 SENDER UNITS FOR INSTRUMENTS - 12/24V - simple VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8019334 | TRANSMITTER IATA |
| 2 | 8114030 | TRANSMITTER IBPO |
| 3 | 8100418 | TRANSMITTER TTA |
| 4 | 8100417 | TRANSMITTER TPO |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 16992115 | THREADED PLUG M10X1 |
| 7 | 16550760 | GASKET Ø10X13,5 MM SP=1 |
| 8 | 8043699 | PIPE SOCKET |
| 9 | 8043752 | PIPE SOCKET |
| 10 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
