S30ENTM23.10

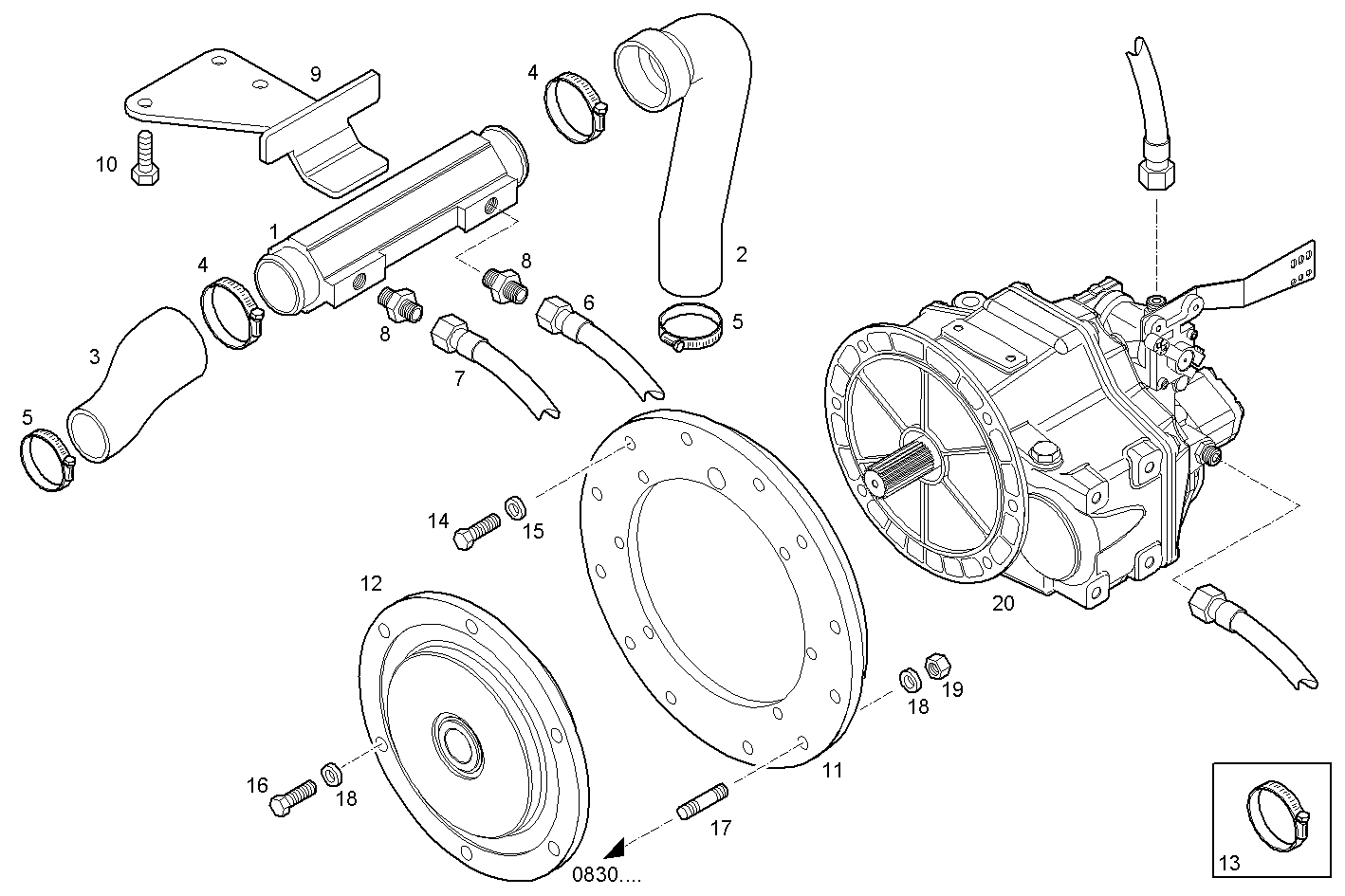

A51400502 MARINE GEAR TECHNODRIVE TM 485 A - ratio 2.09:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8044465 | MARINE GEAR OIL HEAT EXCH |
| 2 | 8044444 | RUBBER SLEEVE |
| 3 | 8044442 | RUBBER SLEEVE |
| 4 | 17764993 | CLIP �50/70 MM |
| 5 | 17764893 | CLIP �40/60 MM |
| 6 | 8105620 | HOSE |
| 7 | 4935779 | HOSE |
| 8 | 8101073 | PIPE SOCKET |
| 9 | 8044429 | SUPPORT |
| 10 | 15003921 | HEXAGON BOLT M10 |
| 11 | 8047466 | FLANGE |
| 12 | 8043317 | FLEXIBLE COUPLING |
| 13 | 17765093 | CLIP �60/80 MM |
| 14 | 16607734 | HEXAGON BOLT M10X30 MM |
| 15 | 17494934 | WASHER �10X18,1X2,2 MM |
| 16 | 16607625 | SCREW M10X25 |
| 17 | 16731124 | STUD M10X20 |
| 18 | 17095004 | WASHER �10X18X2 MM |
| 19 | 17038131 | HEXAGON NUT M10 |
| 20 | 8047479 | MARINE GEAR 2.09:1 |
