S30ENTM23.10

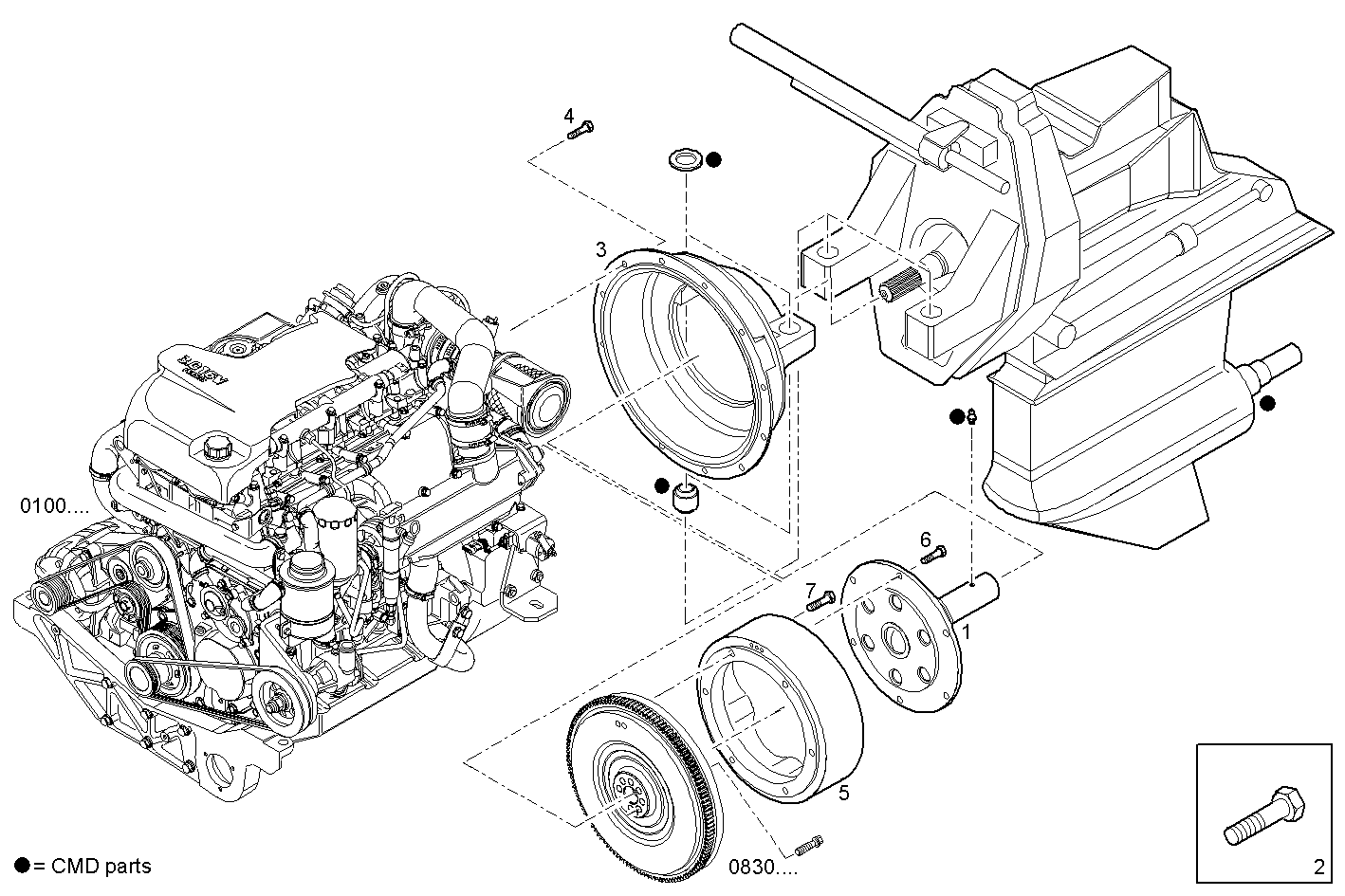

A53150512 STERN DRIVE - Bravo Three X Plus rap 1,81:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8050470 | FLEXIBLE COUPLING |
| 2 | 16587625 | HEXAGON BOLT M10X50 MM |
| 3 | 8050486 | FLANGE |
| 4 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 5 | 8050367 | SPACING BAR |
| 6 | 16675835 | HEXAGON BOLT M10X30 MM |
| 7 | 16587325 | HEXAGON BOLT M10X35 MM |
