V08ENTM11.10C210

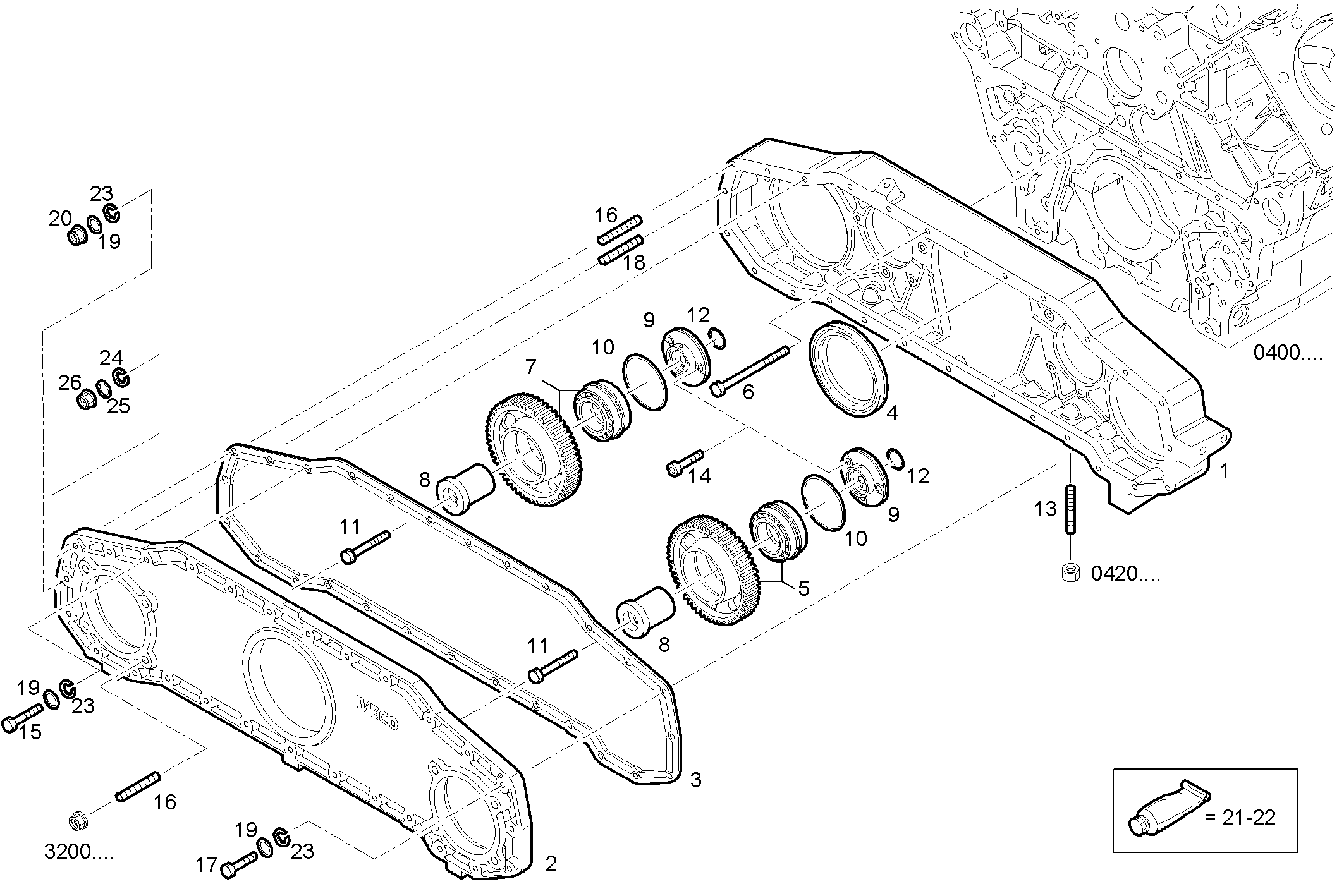

0430.222 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 504112486 TIMINGGEAR HOUSIN [FROM 10-06-05]
1 504040123 TIMINGGEAR HOUSIN [UP TO 09-06-05]
2 504113264 FRONT C.CASE COVER [FROM 10-06-05]
2 504040124 FRONT C.CASE COVER [UP TO 09-06-05]
3 504045915 FLAT ENGINE GASKET [UP TO 09-06-05]
4 504036096 SHAFT SEAL Ø100X130X13/14 MM
5 504041130 GEAR RIGHT ASSY
6 16626734 HEXAGON BOLT M8X100 MM
7 504041129 GEAR LEFT ASSY
8 504042359 SHAFT
9 504042358 SPACING BAR
10 17291081 O-RING Ø88,49X3,53 MM
11 16678934 HEXAGON BOLT M12X80 MM
12 17282681 O-RING SP=2,62 MM
13 16731324 STUD M10X30 MM
14 16692134 CYLIND-HEAD SCREW M10X1,25X25 MM
15 16625734 HEXAGON BOLT M8X35
16 16748734 STUD M10X1,25X35 MM
17 16673735 HEXAGON BOLT M8X25 MM
18 16746835 STUD M8X30 MM
19 16665514 WASHER Ø8 MM
20 17042531 HEXAGON NUT M8
21 2992504 ADHESIVE/STICKER LOCTITE
22 2992695 ADHESIVE/STICKER LOCTITE
23 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
24 17090074 SPRING WASHER Ø10X20X1,9 MM
25 16665614 WASHER Ø10,5 MM
26 17042635 HEXAGON NUT M10
