V08ENTM11.10D210

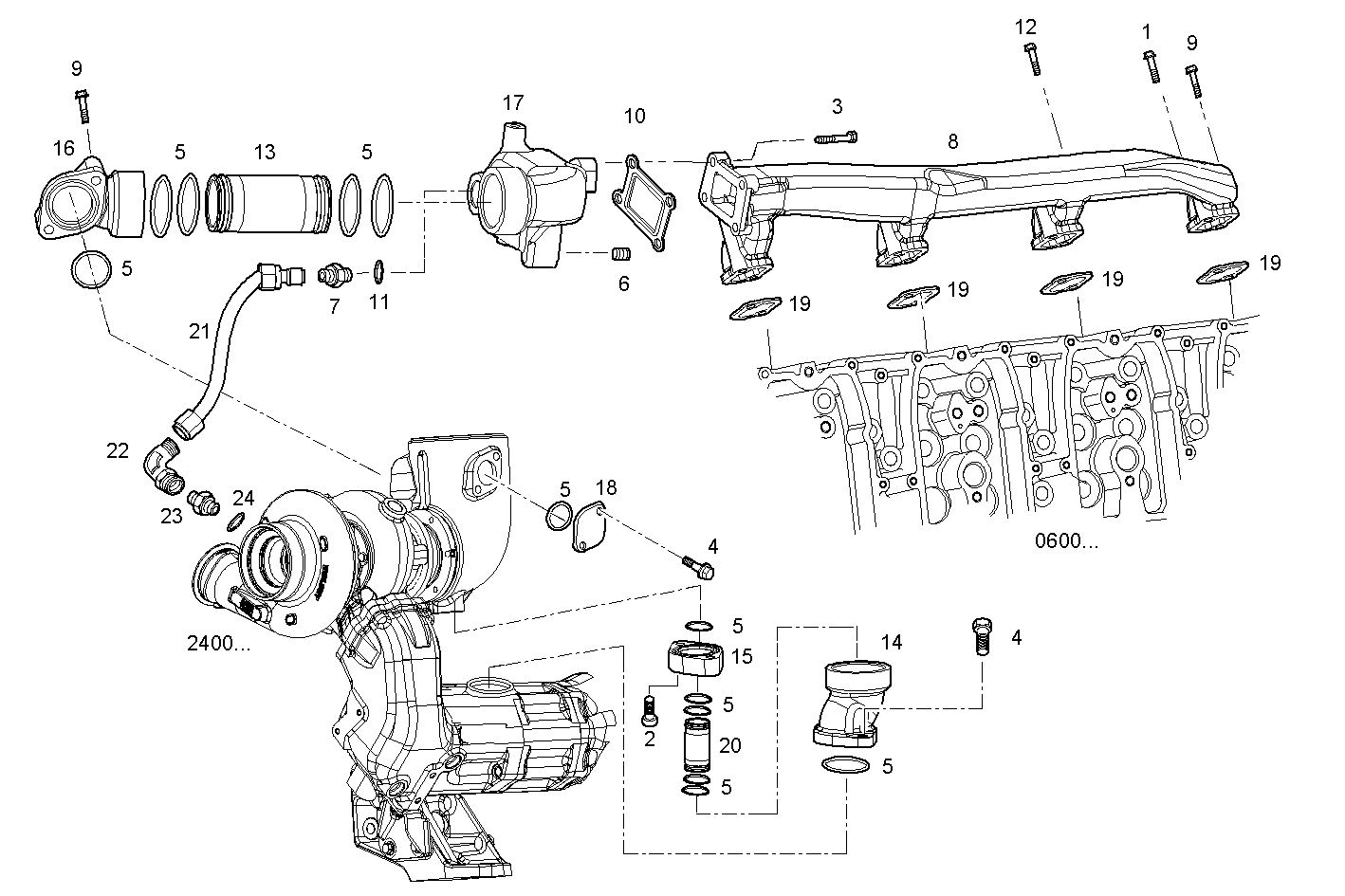

3210.322 WATER LINES - dx lines head water outlet

Iveco/FPT WATER LINES

Item Part number Description
1 504067722 HEXAGON BOLT M8X1,25X75 MM
2 16673735 HEXAGON BOLT M8X25 MM
3 16673835 HEXAGON BOLT M8X30 MM
4 16690624 CYLIND-HEAD SCREW M8X25 MM
5 17283681 O-RING Ø45,6 MM SP=2,62 MM
6 17873271 THREADED INSERT M8
7 41031577 THREADED UNION M26X1,5/M30X2,0
8 504208989 WATER MANIFOLD LEFT
9 16592424 HEXAGON BOLT M8X65 MM
10 504049041 INTAKE ELBOW GASK.
11 99489024 SEAL GASKET dia. 26x36x1,5
12 504067723 HEXAGON BOLT M8X1,25X60 MM
13 8039364 CONNECTION PIPE
14 8042753 WATER PIPE
15 8040189 FLANGE
16 8040251 CONNECTION PIPE
17 8040253 WATER PIPE
18 8040286 COVER
19 504044304 INTAKE ELBOW GASK.
20 8042754 WATER PIPE
21 8042450 WATER PIPE
22 16526514 ELBOW COUPLING
23 8040224 THREADED UNION
24 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
