V08ENTM11.10D210

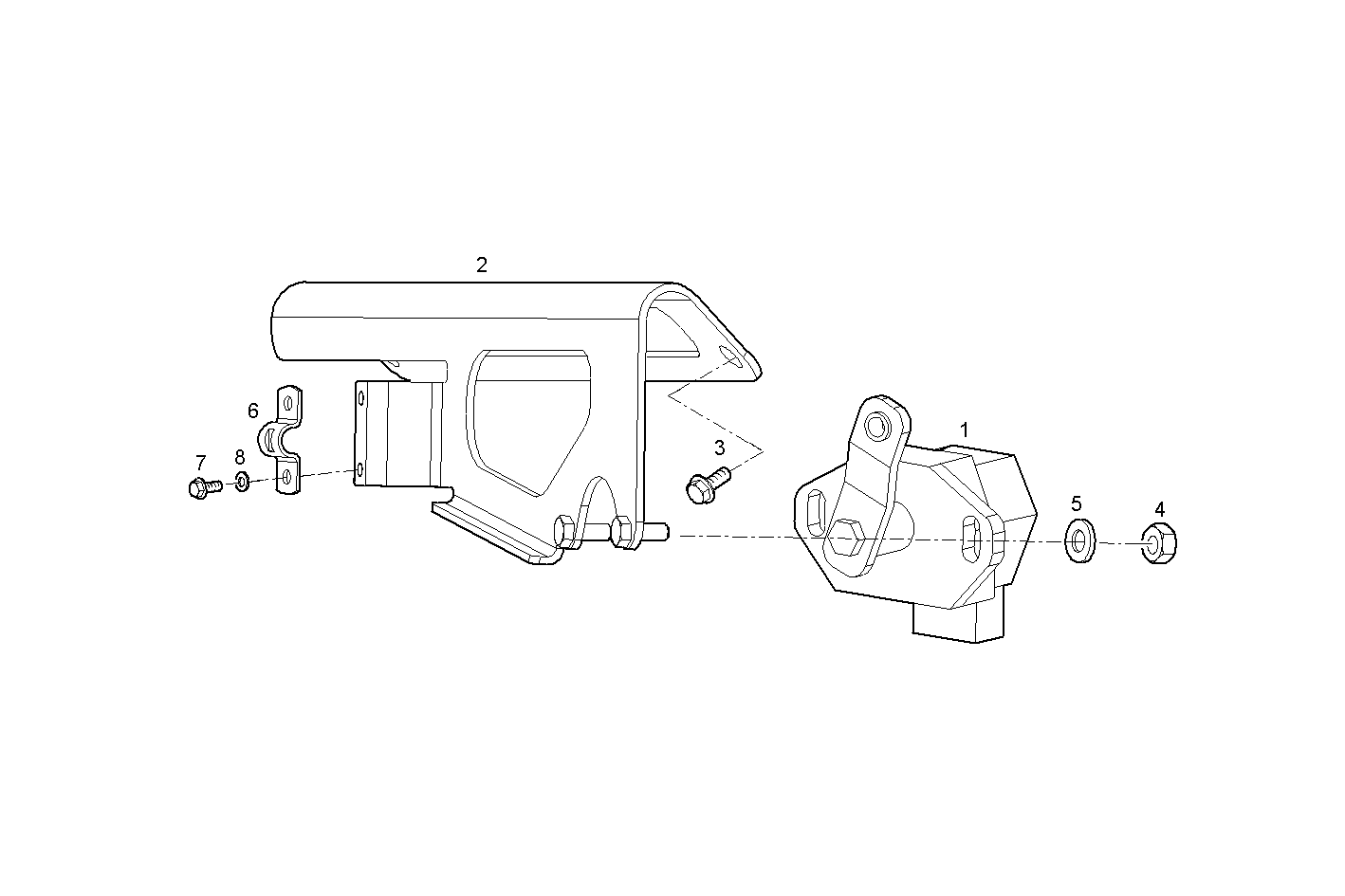

3296.008 SENSORS - accelerator pedal
| Item | Part number | Description |
|---|---|---|
| 1 | 8040187 | ELECTRON.TRANSMITT |
| 2 | 8043000 | RETAINER |
| 3 | 16597924 | HEXAGON BOLT M8X14 MM |
| 4 | 17787270 | HEXAGON NUT M6 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 8033783 | RETAINER |
| 7 | 16601924 | HEXAGON BOLT M5X10 MM |
| 8 | 17800274 | SPRING WASHER Ø5X11 MM |
