Catalogue Menu
V08ENTM11.10R210

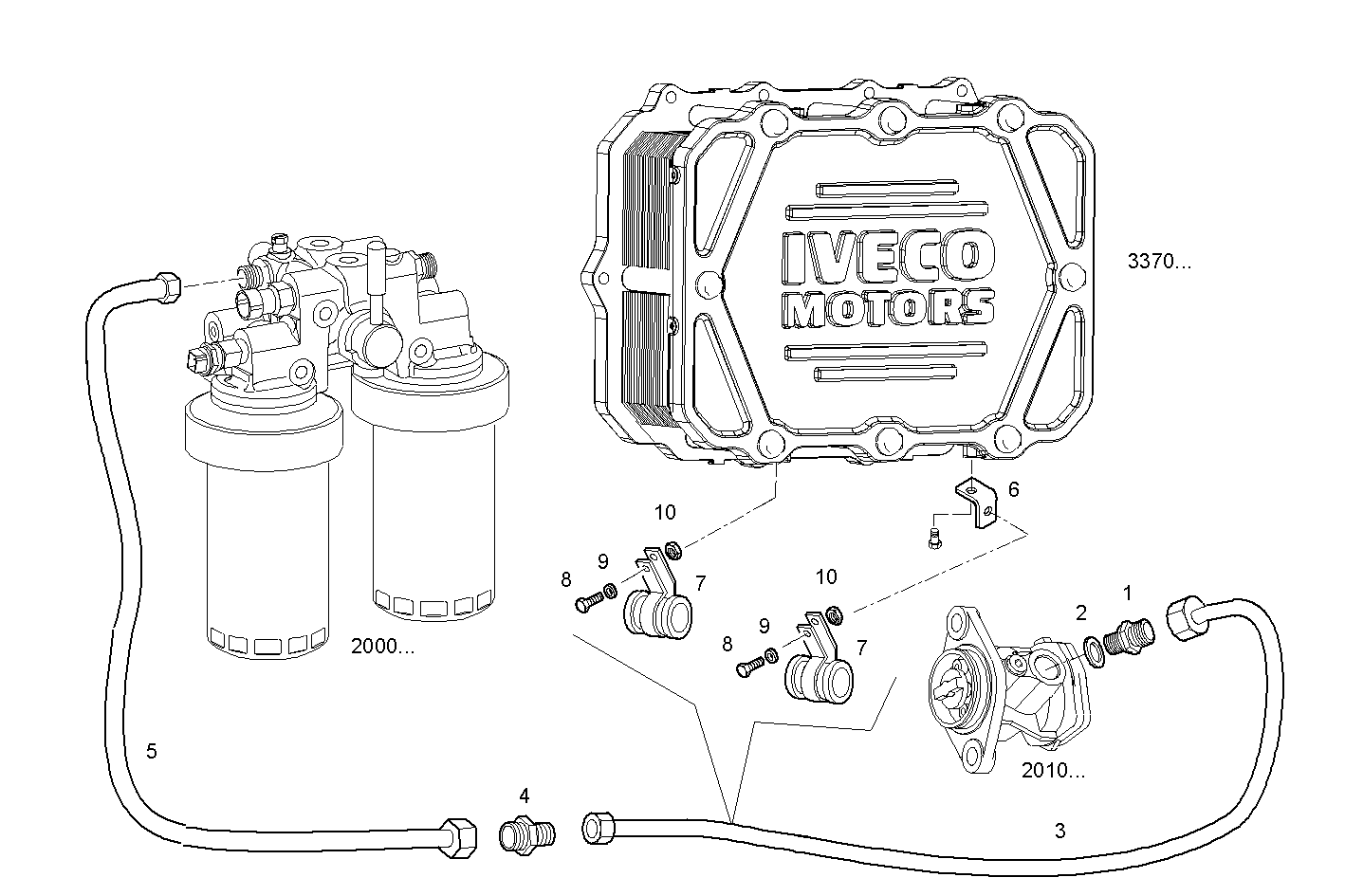

2030.283 FUEL LINES - fuel inlet to filter
| Item | Part number | Description |
|---|---|---|
| 1 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 2 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 3 | 8042108 | FUEL LINE |
| 4 | 16501815 | THREADED UNION |
| 5 | 8042114 | FUEL LINE |
| 6 | 8039417 | RETAINER |
| 7 | 17316490 | CLIP |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 17037921 | HEXAGON NUT M8X1,25 |
