V08ENTM11.10R210

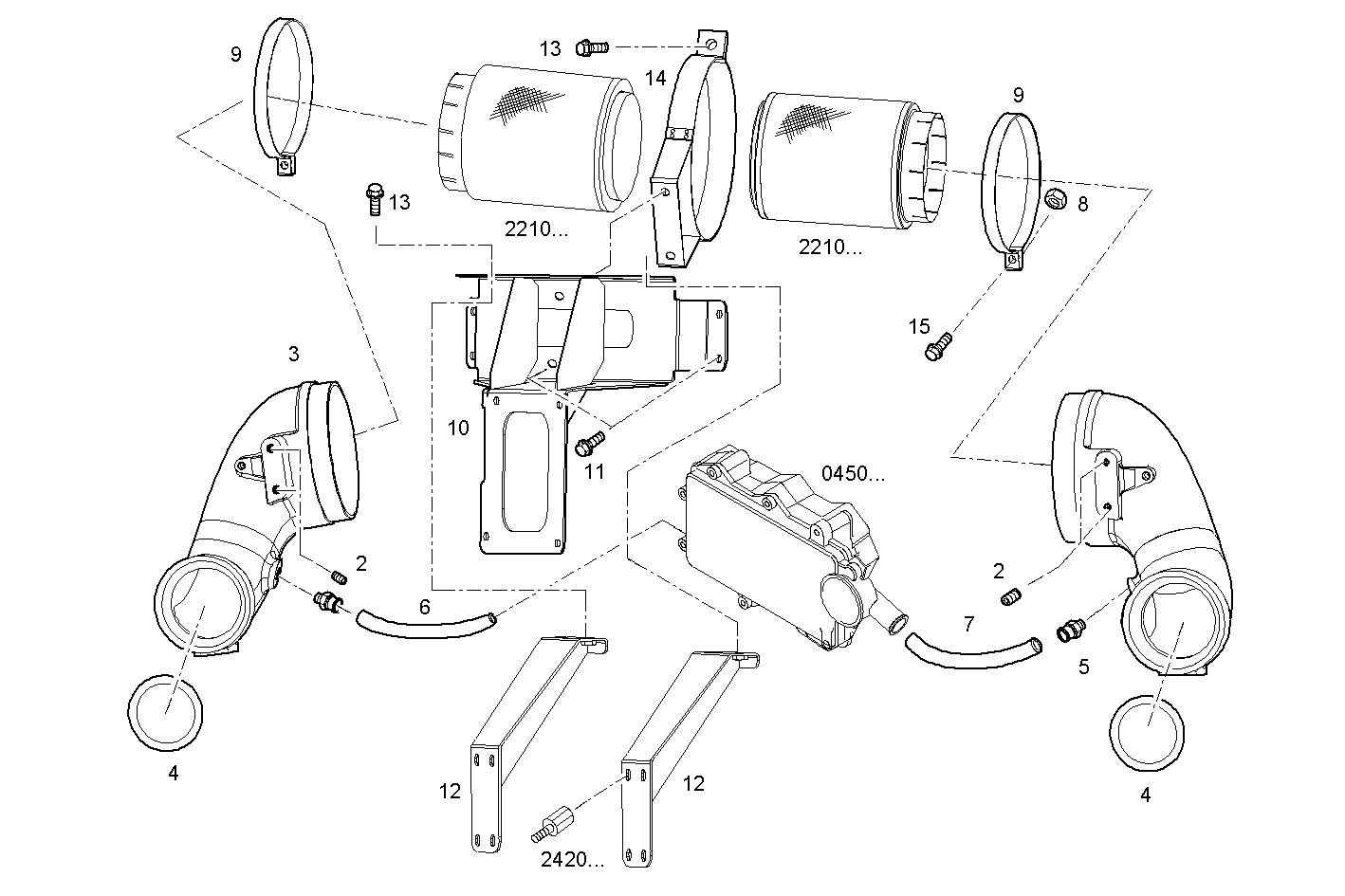

2210.062 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8039924 | INTAKE ELBOW air filter SX |
| 2 | 17873271 | THREADED INSERT M8 |
| 3 | 8039927 | INTAKE ELBOW air filter DX |
| 4 | 17292181 | O-RING Ø123,42X3,53 MM |
| 5 | 8041228 | THREADED UNION |
| 6 | 8041229 | RUBBER SLEEVE L=290 mm. |
| 7 | 8043622 | RUBBER SLEEVE L=200 mm. |
| 8 | 17044735 | NUT M8 |
| 9 | 8040159 | RETAINER |
| 10 | 8039958 | FILTER SUPPORT AIR |
| 11 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 12 | 8039960 | RETAINER |
| 13 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 14 | 8040077 | CLIP |
| 15 | 16605424 | SCREW M8X16 MM (8.8) |
