V08ENTM12.10A210

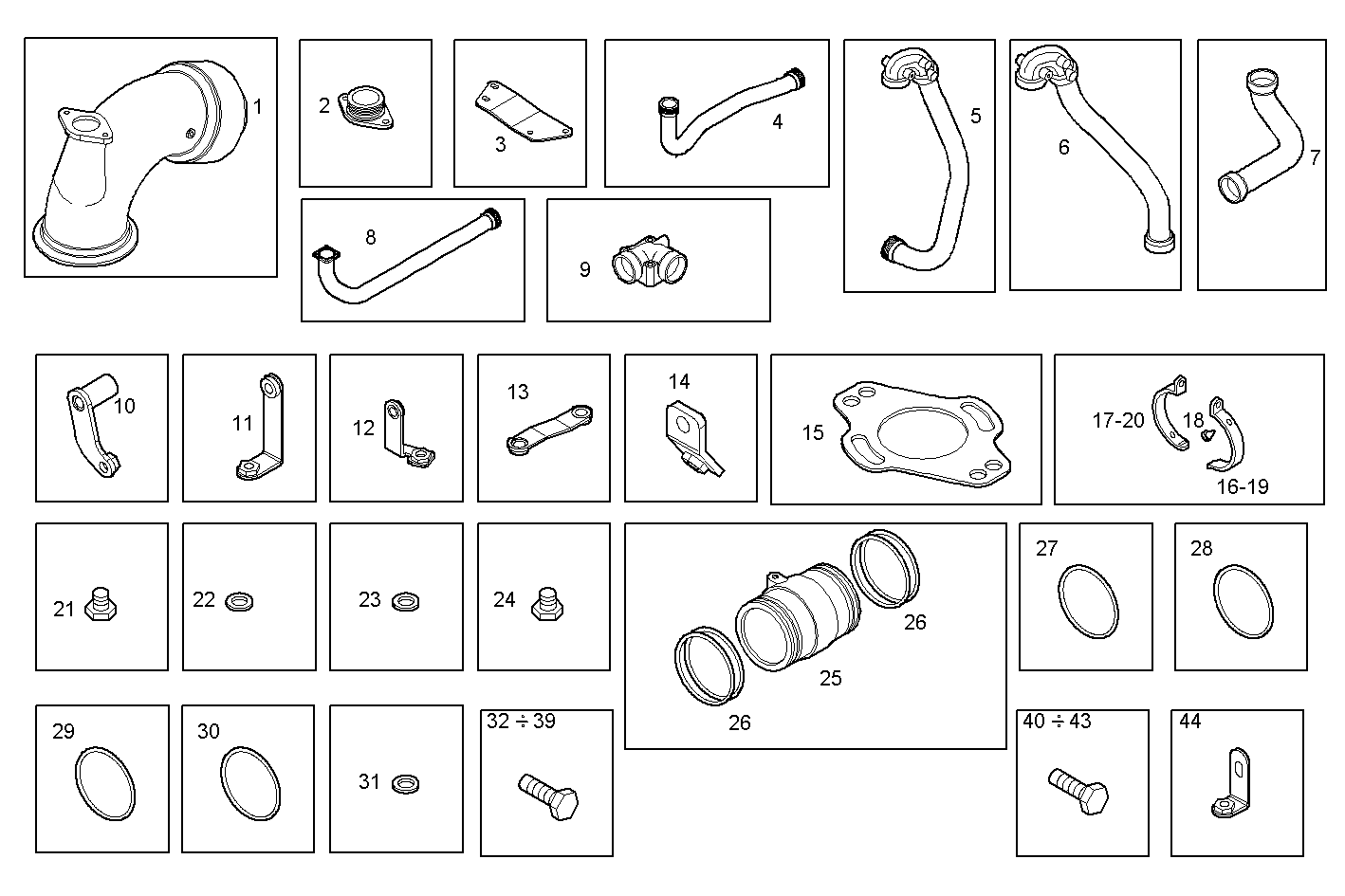

A40050521 GAS-WATER MIXER WITH STERN OUTLET

Iveco/FPT GAS-WATER MIXER WITH STERN OUTLET

Item Part number Description
1 8042852 MARINE EXHAUST PIPE
2 8013110 SPACING BAR
3 8047561 RETAINER
4 8040328 SEA WATER PIPE
5 8040323 SEA WATER PIPE
6 8040343 SEA WATER PIPE
7 8040212 SEA WATER PIPE
8 8040319 SEA WATER PIPE
9 8040321 SEA WATER PIPE
10 8044710 RETAINER
11 8044715 RETAINER
12 8044718 RETAINER
13 8044751 RETAINER
14 8041763 RETAINER
15 8044618 PLATE
16 8041747 CLIP
17 8041748 CLIP
18 1366290 RUBBER LUG
19 8113295 CLAMP Ø50 MM
20 8113296 CLAMP Ø50 MM
21 16992640 PLUG M22X1,5
22 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
23 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
24 16992240 THREADED PLUG M12X1,5
25 8039306 SEA WATER PIPE
26 17290781 O-RING Ø78,97X3,53 MM
27 17290681 O-RING Ø75,79X3,53 MM
28 17284281 O-RING Ø55,24X2,62 MM
29 17289881 O-RING Ø50,3 MM SP=3,5 MM
30 17289981 O-RING Ø53,57X3,53 MM
31 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
32 16673635 HEXAGON BOLT M8X1.25X20
33 16592425 HEXAGON BOLT M8X65 MM
34 16673835 HEXAGON BOLT M8X30 MM
35 16605624 HEXAGON BOLT M8X25 MM (8.8)
36 16673735 HEXAGON BOLT M8X25 MM
37 16597925 HEXAGON BOLT M8X14 MM
38 16586225 HEXAGON BOLT M8X1,25X16 MM
39 16605524 HEXAGON BOLT M8X20 MM
40 18139424 HEXAGON BOLT M10X20 MM
41 16587125 HEXAGON BOLT M10X25 MM
42 16676834 HEXAGON BOLT M10X70 MM
43 16587824 HEXAGON BOLT M10X1,5X60 MM
44 8044620 RETAINER
