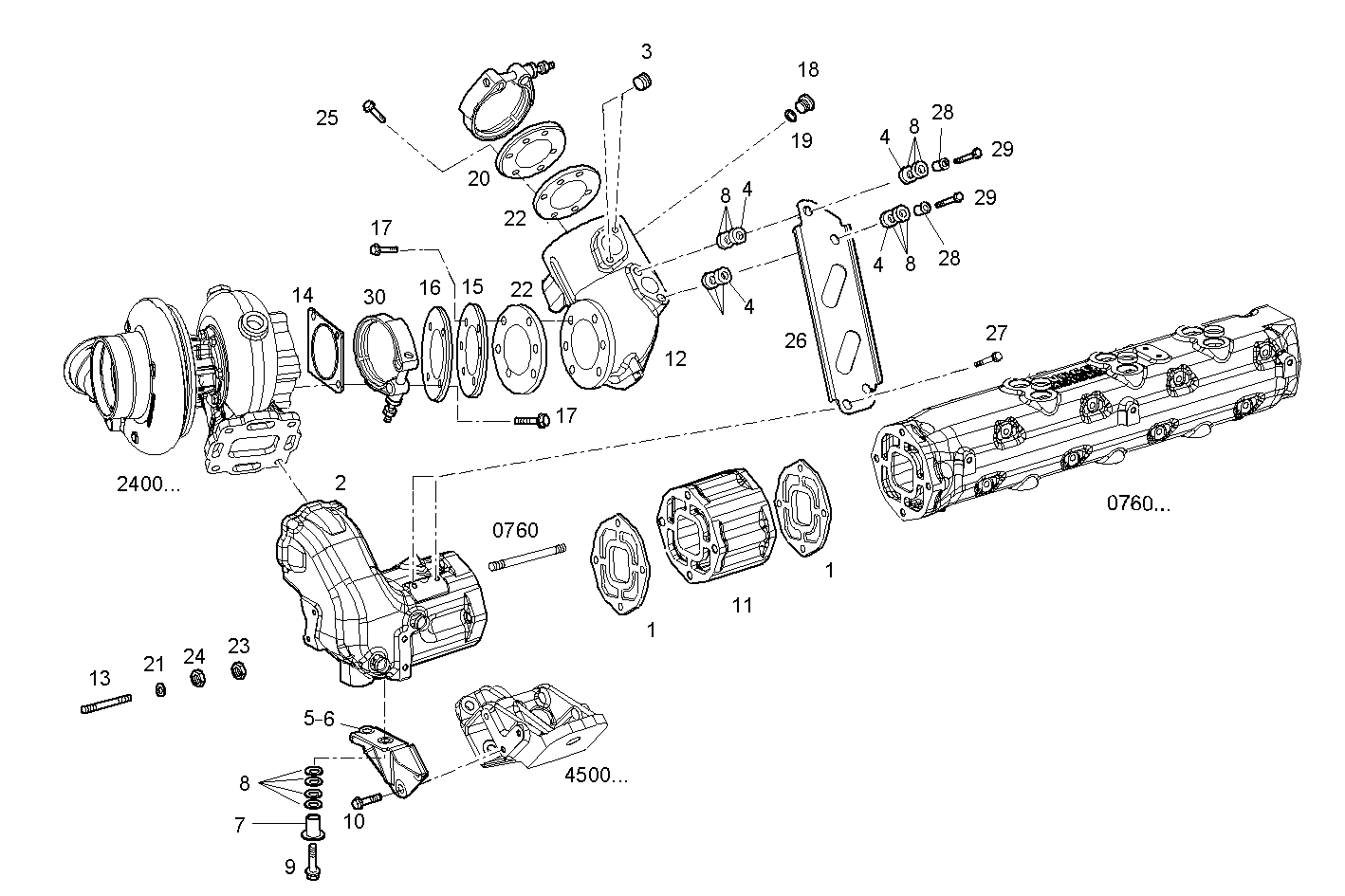

| Item |
Part number |
Description |
|
1 |
8042414 |
EXH. MANIFOLD GKT |
|
2 |
8042415 |
EXHAUST COOL. ELBOW |
|
3 |
17873271 |
THREADED INSERT M8 |
|
4 |
17095224 |
WASHER Ø12X20 MM |
|
5 |
8043057 |
FASTENING BRACKET LEFT |
|
6 |
8043088 |
FASTENING BRACKET RIGHT |
|
7 |
8110050 |
BUSH |
|
8 |
8110051 |
SPRING |
|
9 |
16587425 |
HEXAGON BOLT M10X40 MM |
|
10 |
16587125 |
HEXAGON BOLT M10X25 MM |
|
11 |
8042418 |
SPACING BAR |
|
12 |
8043293 |
EXHAUST COOL. ELBOW |
|
13 |
16731334 |
STUD M10X30 |
|
14 |
8040168 |
EXH. MANIFOLD GKT |
|
15 |
8043193 |
FLANGE |
|
16 |
8043194 |
FLANGE |
|
17 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
18 |
16992411 |
THREADED PLUG M16X1,5 |
|
19 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
20 |
8040247 |
FLANGE |
|
22 |
8009600 |
GASKET |
|
23 |
17042731 |
HEXAGON NUT |
|
24 |
16979731 |
NUT M10X1,25 |
|
25 |
16690824 |
CYLIND-HEAD SCREW M8X35 MM |
|
26 |
8042744 |
FASTENING BRACKET |
|
27 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
28 |
8042748 |
SPACING BAR |
|
29 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
30 |
8040248 |
CLIP |
