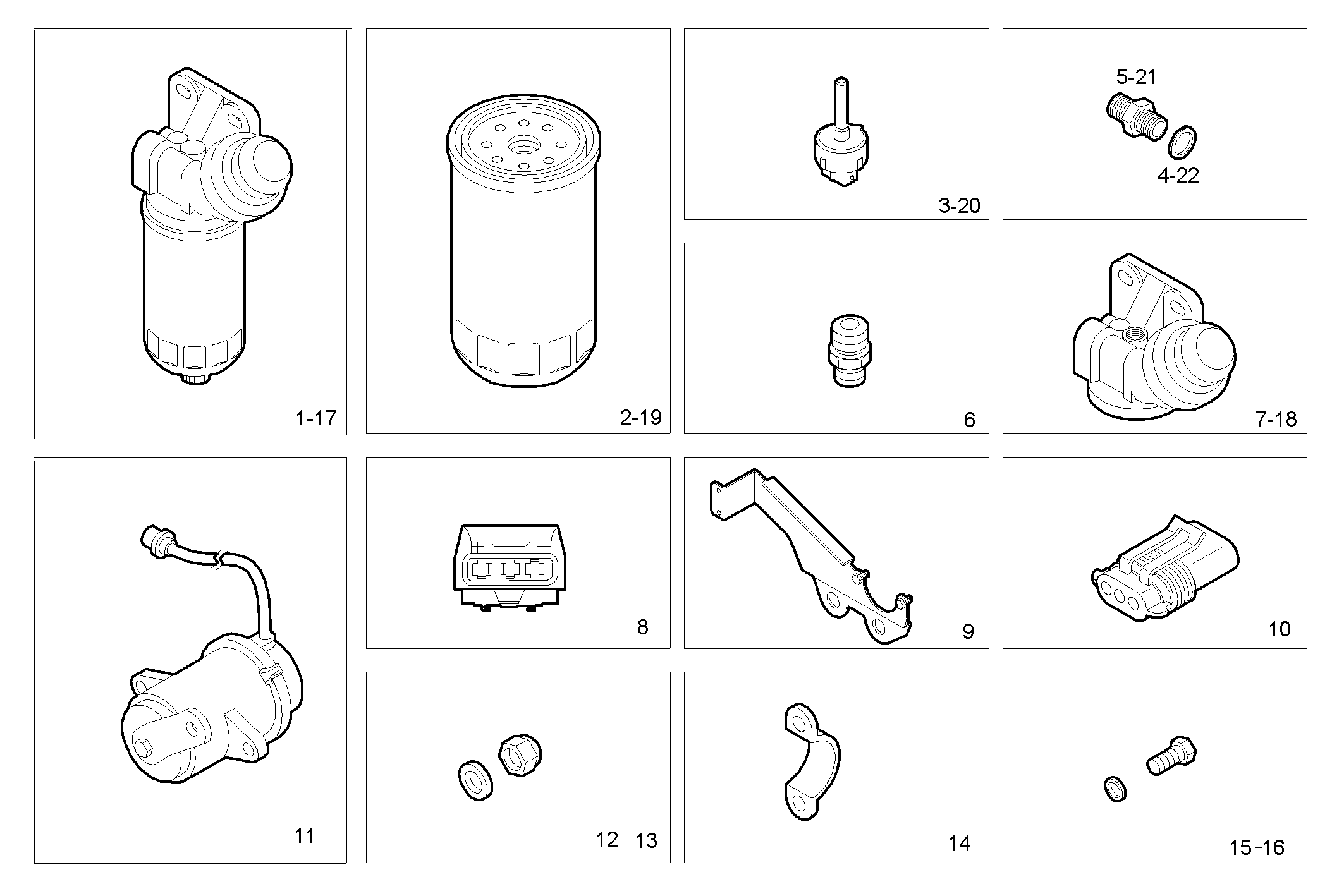

| Item |
Part number |
Description |
|
1 |
504057743 |
PREFILTER ASSY |
|
2 |
2992662 |
FUEL FILTER ELEM. |
|
3 |
42540203 |
SENSOR WATER |
|
4 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
5 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
6 |
42545574 |
THREADED UNION |
|
7 |
42545573 |
FUEL FILT.SUPPORT |
|
8 |
8030575 |
CONNECTION ASSY |
|
9 |
8036698 |
SUPPORT |
|
10 |
8033199 |
CONNECTION ASSY |
|
11 |
8040187 |
ELECTRON.TRANSMITT |
|
12 |
17088474 |
WASHER Ø6X12 MM |
|
13 |
17787270 |
HEXAGON NUT M6 |
|
14 |
8033783 |
RETAINER |
|
15 |
17800274 |
SPRING WASHER Ø5X11 MM |
|
16 |
16601924 |
HEXAGON BOLT M5X10 MM |
|
17 |
504143664 |
PREFILTER ASSY [FROM 10-05-07] |
|
18 |
42550973 |
FUEL FILT.SUPPORT |
|
19 |
42554067 |
FUEL FILTER ELEM. [FROM 10-05-07] |
|
20 |
42554740 |
COVER |
|
21 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
|
22 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
