V08ENTM75.10A210

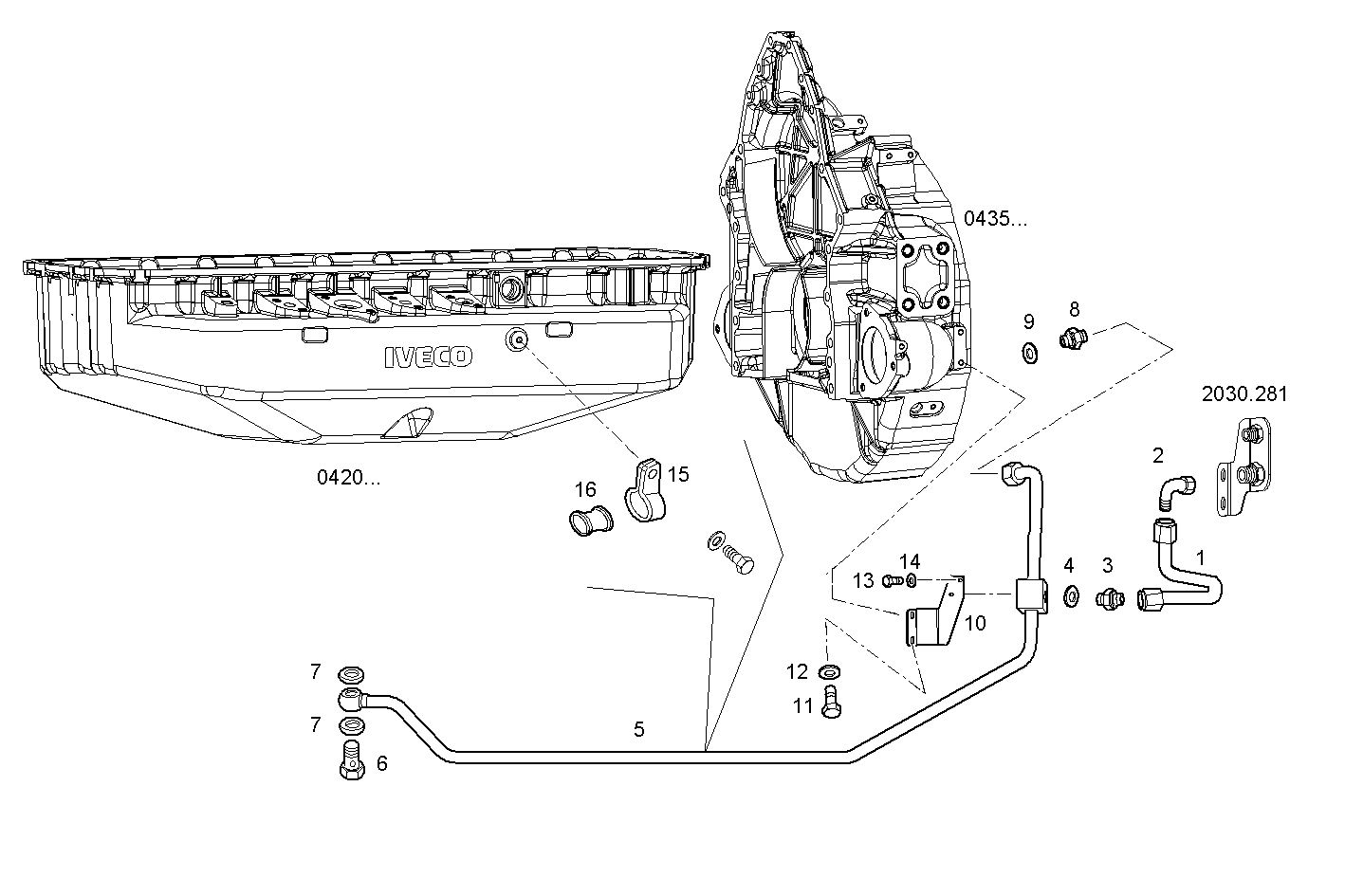

2030.282 FUEL LINES - fuel inlet pipe to fuel pump

Iveco/FPT FUEL LINES

Item Part number Description
1 8042334 FUEL LINE
2 16512119 ELBOW COUPLING
3 8011696 PIPE SOCKET M16X1,5/M22X1,5
4 99489019 WASHER Ø16X24 MM SP=1,5 MM
5 8042155 FUEL LINE
6 4864085 SCREW CONNECTOR M18X1,5
7 98474311 SEAL GASKET Ø18X26 MM
8 16500514 THREADED UNION M22X1,5 - M26X1,5
9 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
10 8042376 RETAINER
11 16605524 HEXAGON BOLT M8X20 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16603677 HEXAGON BOLT M6X16 MM
14 17088474 WASHER Ø6X12 MM
15 8033225 CLIP
16 4684880 RUBBER PAD
