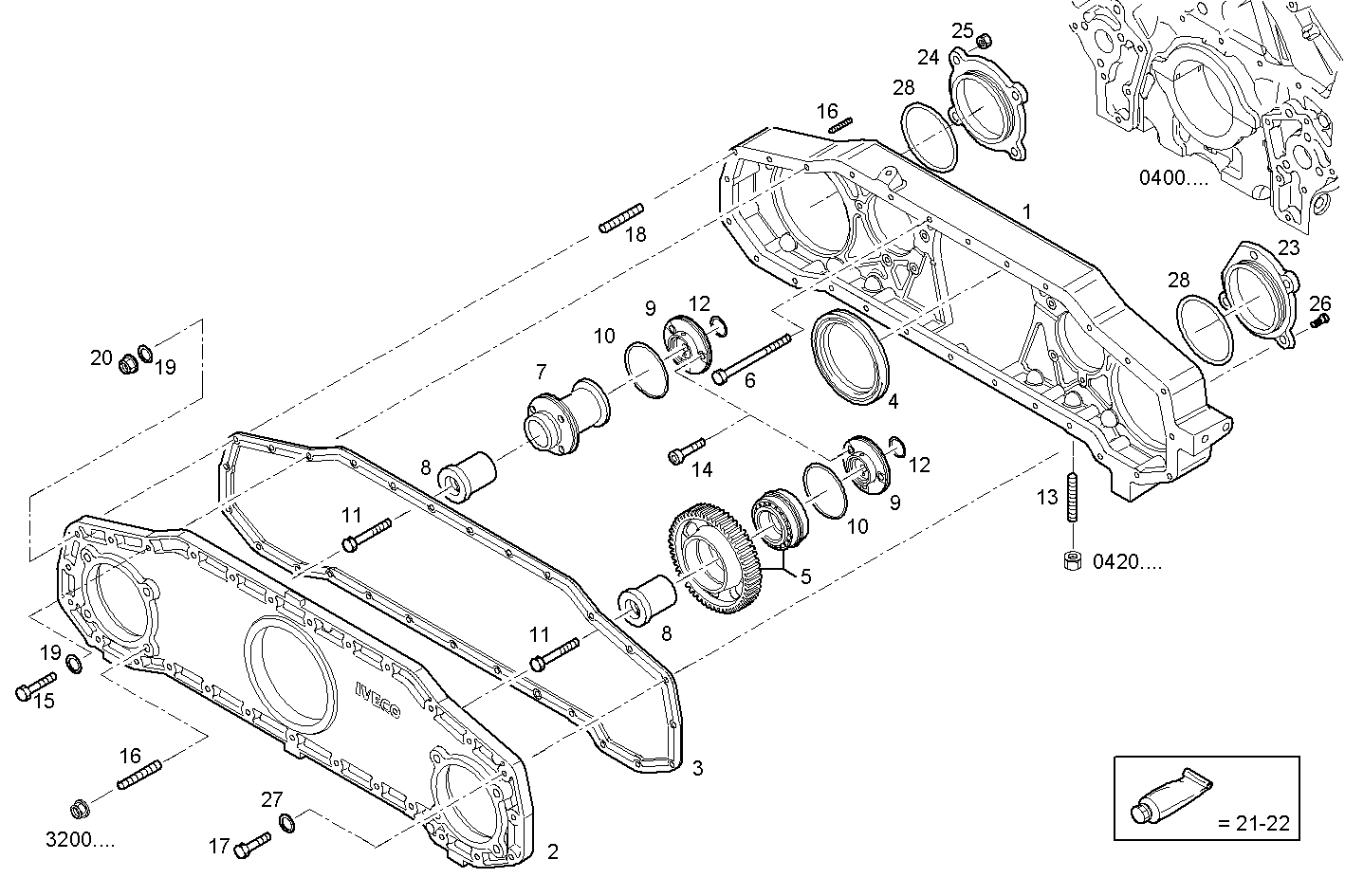

| Item |
Part number |
Description |
|
1 |
504112486 |
TIMINGGEAR HOUSIN [FROM 10-06-05] |
|
1 |
504040123 |
TIMINGGEAR HOUSIN [UP TO 09-06-05] |
|
2 |
504113264 |
FRONT C.CASE COVER [FROM 10-06-05] |
|
2 |
504040124 |
FRONT C.CASE COVER [UP TO 09-06-05] |
|
3 |
504045915 |
FLAT ENGINE GASKET [UP TO 09-06-05] |
|
4 |
504036096 |
SHAFT SEAL Ø100X130X13/14 MM |
|
5 |
504041130 |
GEAR RIGHT ASSY |
|
6 |
16626734 |
HEXAGON BOLT M8X100 MM |
|
7 |
504095563 |
SPACING BAR |
|
8 |
504042359 |
SHAFT |
|
9 |
504042358 |
SPACING BAR |
|
10 |
17291081 |
O-RING Ø88,49X3,53 MM |
|
11 |
16678934 |
HEXAGON BOLT M12X80 MM |
|
12 |
17282681 |
O-RING SP=2,62 MM |
|
13 |
16731324 |
STUD M10X30 MM |
|
14 |
16692134 |
CYLIND-HEAD SCREW M10X1,25X25 MM |
|
15 |
16625734 |
HEXAGON BOLT M8X35 |
|
16 |
16748734 |
STUD M10X1,25X35 MM |
|
17 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
18 |
16746835 |
STUD M8X30 MM |
|
19 |
16665514 |
WASHER Ø8 MM |
|
20 |
17042531 |
HEXAGON NUT M8 |
|
21 |
2992504 |
ADHESIVE/STICKER LOCTITE |
|
22 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
23 |
504093845 |
COVER |
|
24 |
504092537 |
COVER |
|
25 |
17965835 |
HEXAGON NUT |
|
26 |
16587925 |
HEXAGON BOLT |
|
27 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
28 |
17292381 |
O-RING Ø129,8 MM SP=3,53 MM |
