VECTOR8TE2.A002

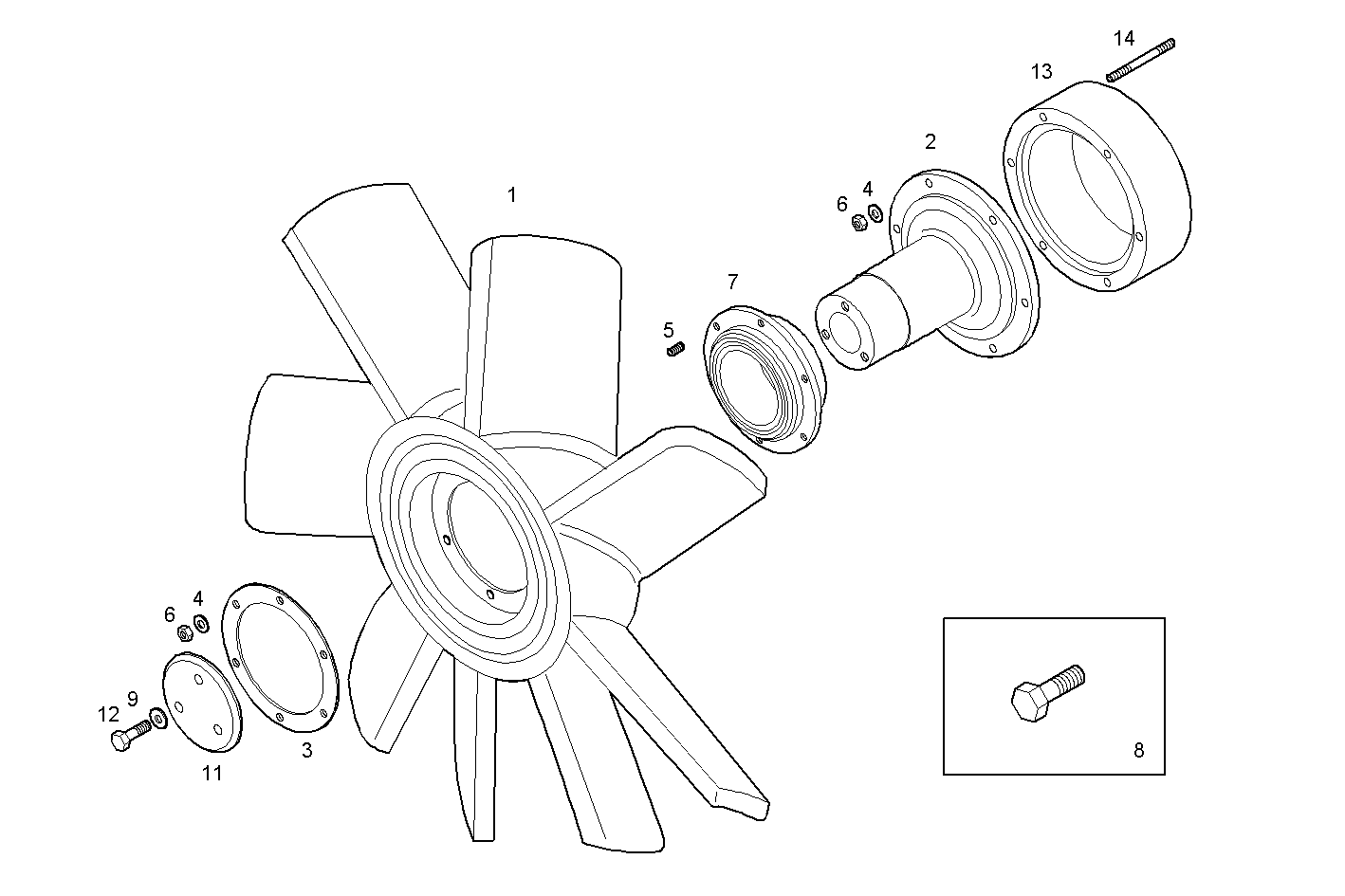

A08705000 PUSHER FAN - for genset
| Item | Part number | Description |
|---|---|---|
| 1 | 504169687 | BLOWER |
| 2 | 8108874 | HUB |
| 3 | 4933279 | RING |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16729224 | STUD M8X16 MM |
| 6 | 17037925 | HEXAGON NUT M8X1,25 |
| 7 | 8108850 | FLEXIBLE COUPLING |
| 8 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 9 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
| 11 | 8108876 | SPACING BAR |
| 12 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 13 | 504168811 | SPACING BAR |
| 14 | 16730524 | STUD M8X90 MM |
