VECTOR8TE2.A002

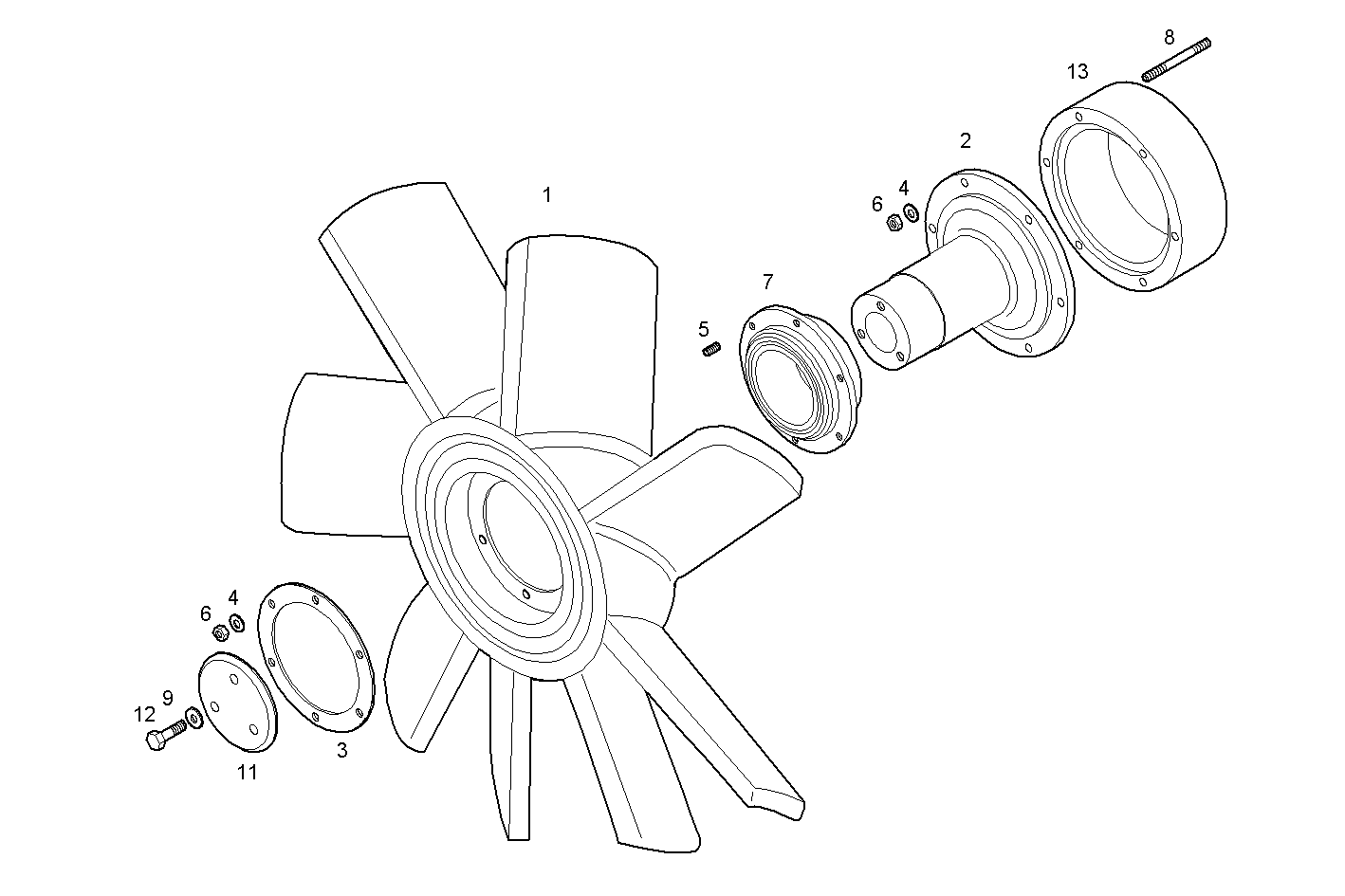

A08705002 PUSHER FAN [FROM 10-04-08] [FROM 10-04-08]
| Item | Part number | Description |
|---|---|---|
| 1 | 504169687 | BLOWER |
| 2 | 8108874 | HUB |
| 3 | 4933279 | RING |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16746725 | STUD |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 8108850 | FLEXIBLE COUPLING |
| 8 | 16730524 | STUD M8X90 MM |
| 9 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 11 | 8108876 | SPACING BAR |
| 12 | 11307024 | SCREW M10X1,25X40 MM |
| 13 | 504168811 | SPACING BAR |
