VECTOR8TE2.A002

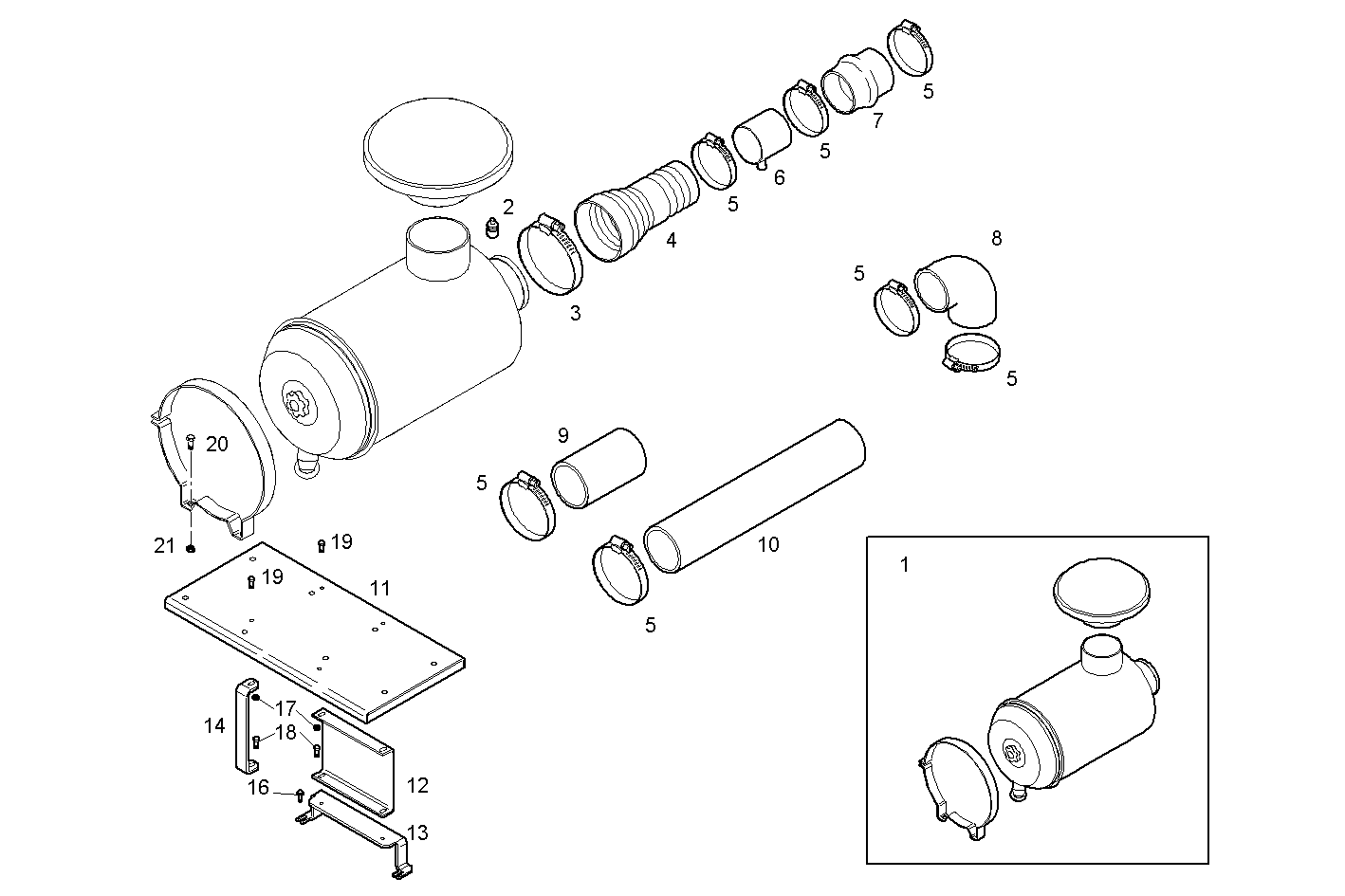

A21505001 DRY AIR CLEANER [FROM 10-04-08] [FROM 10-04-08]

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8034707 AIR CLEANER OPT.
2 8027294 CHOCKED FILTER INDIC. MECHANICAL
3 17766091 CLIP Ø160/180 MM
4 8018132 FILTER HOSE
5 17765494 CLIP dia. = 100/120
6 8019586 AIR PIPE/DUCT LEFT
7 504182694 PIPE
8 8027214 RUBBER SLEEVE
9 504182692 RUBBER SLEEVE L = 200 mm.
10 504182693 HOSE L = 635 mm.
11 504171751 FILTER SUPPORT
12 504171744 FILTER SUPPORT
13 504171743 FILTER SUPPORT
14 504171745 FILTER SUPPORT
15 16586225 HEXAGON BOLT M8X1,25X16 MM
16 16673735 HEXAGON BOLT M8X25 MM
17 17044725 HEXAGON NUT M8
18 16673635 HEXAGON BOLT M8X1.25X20
20 16677735 HEXAGON BOLT M12X25 MM
21 17038425 HEXAGON NUT M12 (8)
